Seat Leon >> Displayed categories
The display in the instrument panel shows the mileage and trip recorder as well as the selector lever position.

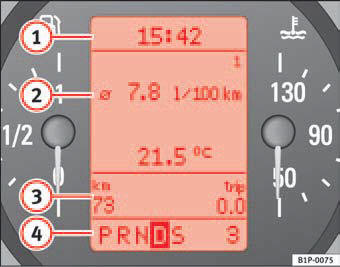

Fig. 37 Digital display in the instrument panel
1 Control and warning lamps: “Control and warning lamps”
1 Clock: “Setting the time”. In some vehicles the ambient temperature is
displayed to the right of the clock.
2 There are optional and automatic displays in this field.
- Selectable displays: e.g. Multi-function display (MFD) and ambient
temperature display
- Automatic indications: information or warning messages: “Information
or warning messages on the screen”
- Menus with diverse information are shown on the screen allowing many
adjustments to be made: “Instrument panel menus”
3 Mileage display or Service Interval Display “Mileage display or Service
Interval Display”
4 Selector lever position display for the automatic gearbox. The actual
position of the selector lever or the gear which is engaged (for Tiptronic)
are highlighted.
Display (without warning or information texts)
The display in the instrument panel shows, amongst other
things, the mileage and trip recorder as well as the selector
lever position.
Fig. 35 Detail of the
instrument panel: Screen
with variou ...
Mileage display or Service Interval Display
Distance display
The left-hand counter in the display registers the total amount of distance
covered by the vehicle.
The right-hand counter registers the short journeys. The last digit indicates
...
