Seat Leon >> Display (without warning or information texts)

The display in the instrument panel shows, amongst other things, the mileage and trip recorder as well as the selector lever position.

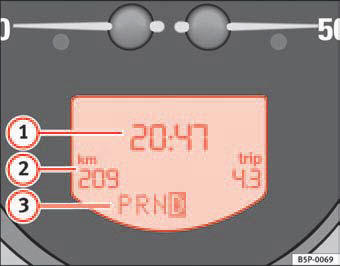

Fig. 35 Detail of the

Fig. 35 Detail of the instrument panel: Screen with various display

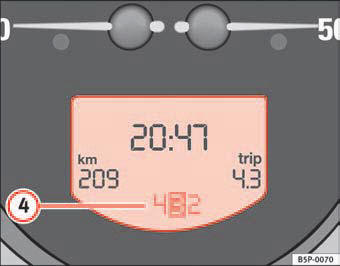

Fig. 36 Detail of instrument

Fig. 36 Detail of instrument panel: Display with Tiptronic gear selection

1 Digital clock display
2 Distance display or service interval display
3 Selector lever position display for the automatic gearbox*.
4 Display for the gears in Tiptronic mode (automatic gearbox)*. The selected gear appears in the display field with a light background fig. 36 5.
