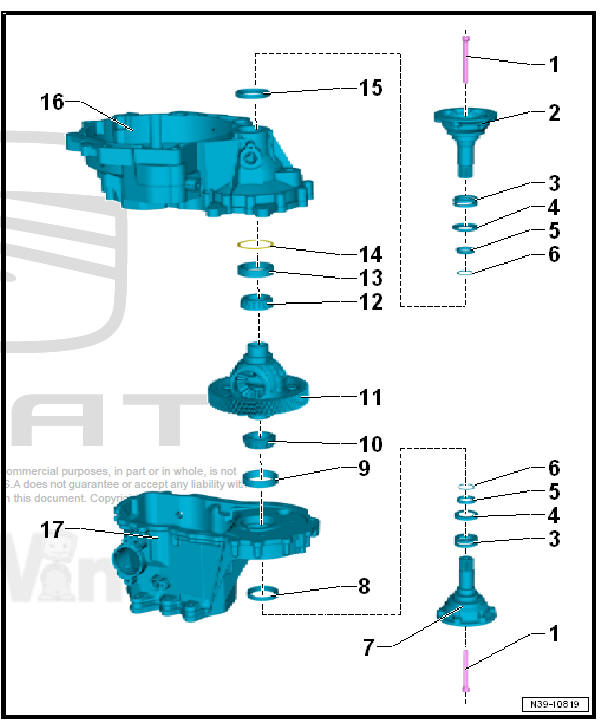

Seat Leon >> Assembly overview - differential

Final drive - differential

  1. - Conical bolt
    • Must be renewed if removed
    • 25 Nm
  2. - Right-hand articulation flange
  3. - Flanged shaft compression spring
    • Fit behind the flanged shafts
  4. - Attack washer
    • Installation position: shoulder facing towards spring
  5. - Conical ring
    • Installation position: conical side facing the differential casing
  6. - Securing ring
    • Keep the following in position: conical ring, shim and pressure spring for flanged shaft when it is dismantled
  7. - Left hand side flanged shaft
  8. - Oil seal for left flange shaft
    • Replace after removal
  9. - Outer ring / conical roller bearing
    • Pull out
    • Press on
  10. - Tapered roller bearing inner race
    • Press out
    • Press on
  11. - Differential
    • With final drive gear
  12. - Tapered roller bearing inner race
    • Press out
    • Press on
  13. - Outer ring / conical roller bearing
    • Press out
    • Press on
  14. - Shim
    • for the differential gear
    • Determine thickness
  15. - Oil seal for right flange shaft
    • Replace after removal
  16. - Clutch housing or
    • Repairing
  17. - Gearbox housing
    • Repairing
    Differential: assembly and disassembly
    Special tools and workshop equipment required Tightening plate - VW 402- Tightening plate - VW 401- Die - VW 408 A- Die - VW 412- Tube element - VW 418 A- Thrust plate - 30-205- ...
