Seat Leon >> Input shaft oil seal: replacement

Special tools and workshop equipment required

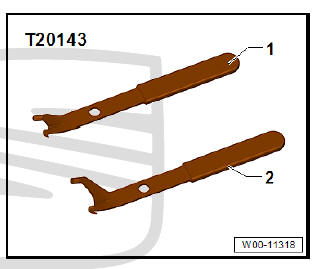

  • Pressing-off lever - T20143/1-

Gears, shafts

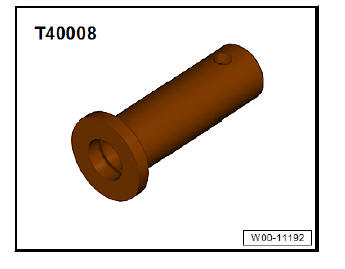

  • Thrust pad - T40008-

Gears, shafts

  • Sealing grease
  • For grease allocation, refer to - Electronic parts catalogue (ETKA) .



  • Remove manual gearbox.
  • Remove clutch release lever together with release bearing and guide sleeve.

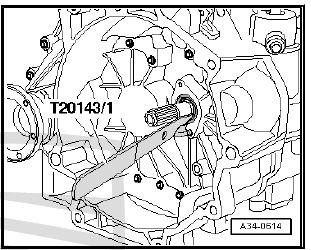

  • Lever out oil seal for input shaft.

Note Do not damage running surface of input shaft for oil seal.

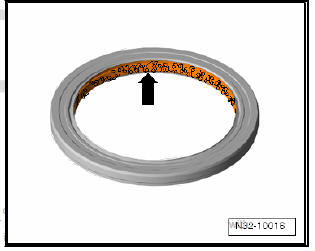

  • Fill space between sealing lip and dust lip -arrow- with sealing grease .
  • Lightly moisten outer circumference of oil seal with gear oil.

Gears, shafts

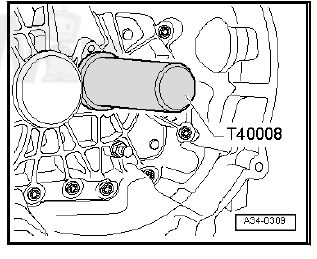

Insert the input shaft seal so it is flush

  • Install clutch release lever with release bearing and guide sleeve.
  • Install manual gearbox.
