Seat Leon >> Installing to engine and gearbox support

Special tools and workshop equipment required

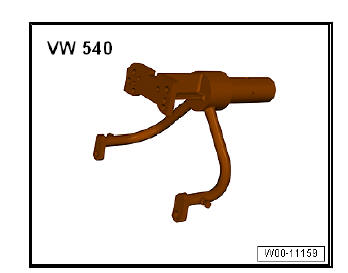

  • Engine and gearbox support - VW 540-

Controls, housing

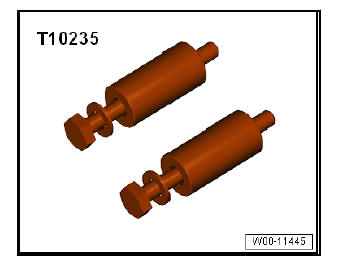

  • Adapter - T10235-

Controls, housing

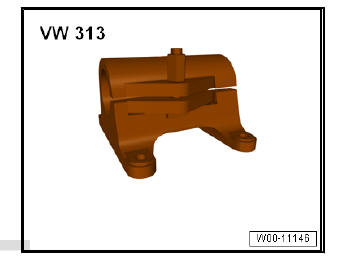

  • Clamping frame - VW 313-

Controls, housing

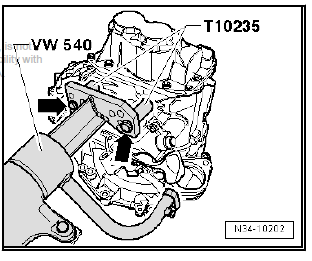

  • Secure gearbox to engine and gearbox support - VW 540- -arrows-.

Gear oil

Checking gear oil level

Special tools and workshop equipment required

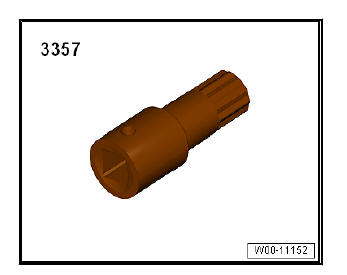

  • Socket bit - 3357- for oil filler plug with multi-point socket head bolt

Controls, housing

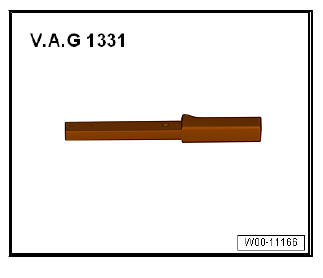

  • Torque wrenches - V.A.G 1331-

Controls, housing

Gearbox oil - Electronic parts catalogue (ETKA)

  • Remove noise insulation.

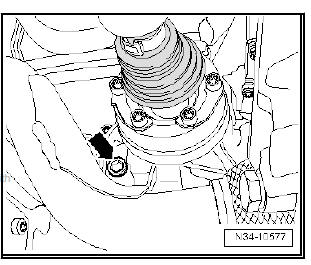

  • To check gear oil, remove oil plug -arrow-.

The gearbox oil level is correct if the box is full up to the lower edge on the filling hole.

  • If necessary, fill with gear oil to lower edge of filler hole.
  • Tighten bolt -arrow-.

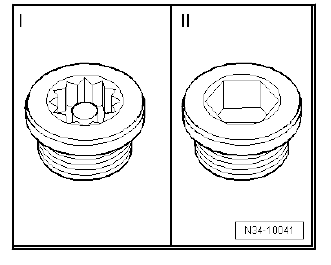

Various versions of oil filler and drain plugs

I - Oil filler or oil drain plug with multi-point socket head, 25 Nm
II - Oil filler or oil drain plug with hexagon socket head, 30 Nm

  • Install noise insulation .
