Seat Leon >> Removing and installing brake disc

Removing and installing brake disc, brake caliper FS III

Special tools and workshop equipment required

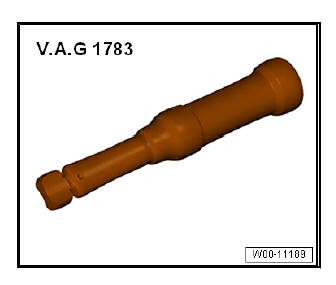

  • Torque wrench 2-10 Nm - VAG 1783-

Brakes - mechanism

Removing:

  • Remove wheels.
  • Remove the brake pads.

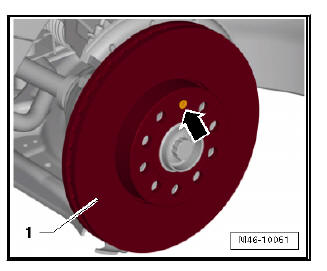

  • Screw out bolt - arrow - for brake disc - 1 -.
  • Remove brake disc -1- from the wheel hub.

Installation:

  • Thoroughly clean the contact surfaces of the brake disc and wheel bearing.
  • Fit brake disc onto wheel hub.

Brakes - mechanism

Note Take care to keep the brake disc straight when fitting it on the wheel hub.

Caution

Use new bolts.

  • Screw in the bolt for the brake disc.
  • Fit the brake pads.
WARNING

Depress the brake pedal vigorously several times "when stationary" to ensure that the brake pads are appropriately bedded in for normal operating conditions.

Make sure that the brakes work properly before the vehicle is driven on the road.

Removing and installing brake disc, FN III brake caliper

Special tools and workshop equipment required

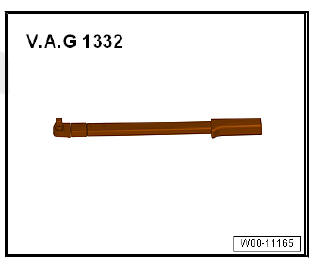

  • Torque wrenches - VAG 1332-

Brakes - mechanism

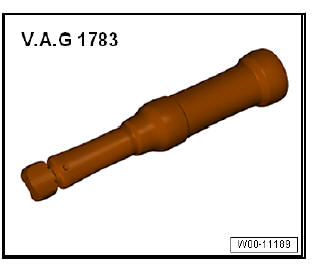

  • Torque wrench 2-10 Nm - VAG 1783-

Brakes - mechanism

Note Remove brake carrier together with brake caliper.

Removing:

  • Remove wheels.

Brakes - mechanism

Note

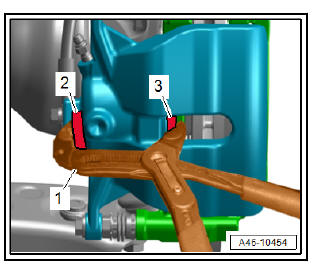

  • In order to be able to loosen the brake calliper from the brake disc more easily, push the brake pad -3- away slightly as shown in the illustration using suitable pliers -1-.
  • Insert a rubber piece -2- or something similar between the pliers and the brake calliper in order to avoid damaging the brake calliper paint.

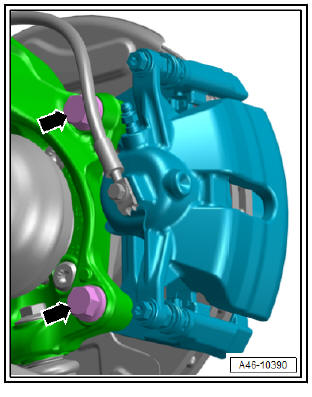

  • Unscrew the bolts -arrows- for attaching the brake carrier to the wheel bearing housing.
  • Remove the brake carrier together with the brake caliper -1-.
  • Secure the assembly with a wire so that no pressure is applied to the wheel bearing housing by the weight of the brake caliper and that it is not damaged.

Brakes - mechanism

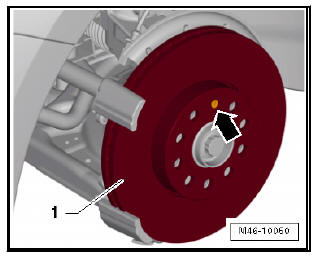

  • Screw out bolt - arrow - for brake disc - 1 -.
  • Remove brake disc -1- from the wheel hub.

Installation:

  • Thoroughly clean the contact surfaces of the brake disc and wheel bearing.
  • Fit brake disc onto wheel hub.

Brakes - mechanism

Note Take care to keep the brake disc straight when fitting it on the wheel hub.

Caution

Use new bolts.

  • Screw in the bolt for the brake disc.
  • Fit the brake carrier and brake caliper assembly into the wheel bearing.
  • Secure the brake carrier with new bolts.
WARNING

Depress the brake pedal vigorously several times "when stationary" to ensure that the brake pads are appropriately bedded in for normal operating conditions.

Make sure that the brakes work properly before the vehicle is driven on the road.

Removing and installing brake disc, Brembo brake caliper

Special tools and workshop equipment required

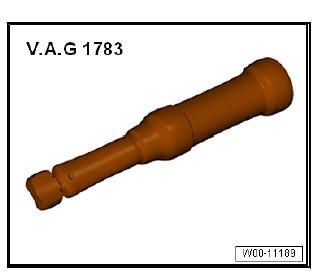

  • Torque wrench 2-10 Nm - VAG 1783-

Brakes - mechanism

Note It is not necessary to disconnect the brake hose from the brake caliper when removing the brake caliper.

  • Remove brake caliper without disconnecting brake hose.
  • Secure brake caliper with wire so that weight of brake caliper does not stress or damage brake hose.
  • Unscrew bolt securing brake disc.
  • Take brake disc off wheel hub.

Installation:

  • Thoroughly clean the contact surfaces of the brake disc and wheel bearing.
  • Fit brake disc onto wheel hub.

Note Take care to keep the brake disc straight when fitting it on the wheel hub.

Caution

Use new bolts.

  • Screw in the bolt for the brake disc.
  • Install brake caliper.
WARNING

Depress the brake pedal vigorously several times "when stationary" to ensure that the brake pads are appropriately bedded in for normal operating conditions.

Make sure that the brakes work properly before the vehicle is driven on the road.

    Removing and installing brake calliper
    Removing and installing brake caliper, FS III brake caliper Note Use brake filling and bleeding equipment - VAS 5234- to extract brake fluid from brake fluid reservoir. Before removing brake ...

    Removing and installing brake splash plate
    Removing: Dismantle brake disc. Unscrew screws -arrows- of splash plate -1-. Remove splash plate -1- from the wheel hub. Installation: Clean wheel hub and splash plate. Fit splash pla ...
