Seat Leon >> Removing and installing speed sensors on front axle -G45- / -G47-

SEAT Leon Service and Repair Manual / Brake system / Anti-lock brake system / Sensors / Removing and installing speed sensors on front axle -G45- / -G47-

Special tools and workshop equipment required

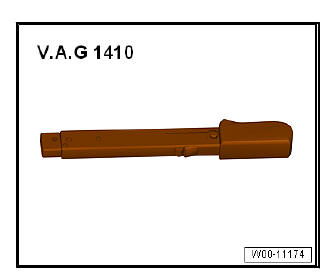

  • Torque wrenches - V.A.G 1410-

Anti-lock brake system

  • Lubricating paste - Electronic parts catalogue .

Removing

  • Remove appropriate front wheel.

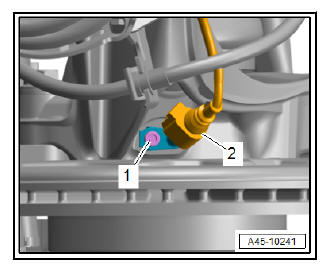

  • Remove electrical connector -2- from the speed sensor.
  • Unscrew bolt -1- and pull speed sensor out of wheel bearing housing.

Installing

Carry out installation in the reverse sequence, noting the following:

  • Before fitting the speed sensor, the inner surface of the hole must be cleaned and lubricating paste must be applied all around it - Electronic parts catalogue .

Anti-lock brake system

    Assembly overview - speed sensor on front axle
    - Speed sensor Front right speed sensor - G45- / rear left speed sensor - G46- Before installing the speed sensor, apply lubricating paste all around - Electronic parts ca ...
