Seat Leon >> Removing and installing rear vehicle level senders -G76- / -G77-

SEAT Leon Service and Repair Manual / Running gear, axles, steering / Self-levelling suspension / Vehicle level sender / Removing and installing rear vehicle level senders -G76- / -G77-

Removing and installing rear left vehicle level sender - G76- , torsion beam axle

Special tools and workshop equipment required

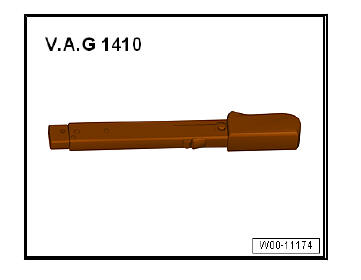

  • Torque wrenches - V.A.G 1410-

Self-levelling suspension

Removing

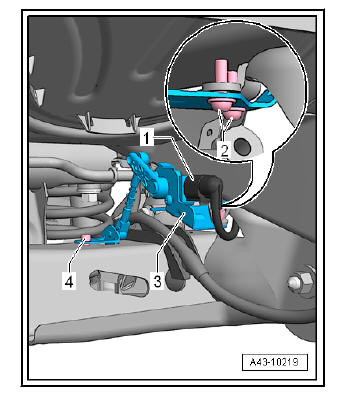

  • Unplug the electrical connector -1-.
  • Unscrew the bolts -2- and -4-.
  • Remove rear left vehicle level sender - G76- -3-.

Installing

Carry out installation in the reverse sequence, noting the following:

Self-levelling suspension

Note The lever of the rear left vehicle level sender - G76- must face towards rear of vehicle.

  • Perform basic setting of wheel damper electronics - Vehicle diagnostic tester.
  • Perform basic setting of headlights.

Removing and installing rear left vehicle level sender - G76- , multi-link suspension

Special tools and workshop equipment required

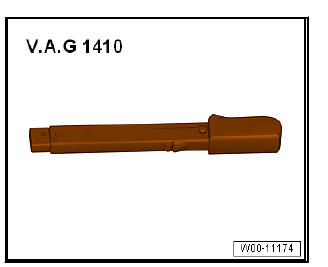

  • Torque wrenches - V.A.G 1410-

Self-levelling suspension

Removing

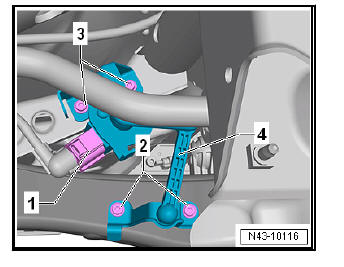

  • Unplug the electrical connector -1-.
  • Unscrew the bolts -2- and -3-.
  • Take out rear left vehicle level sender - G76- -4-.

Installing

Carry out installation in the reverse sequence, noting the following:

Lever on vehicle level sender must face towards outside of vehicle.

  • Perform basic setting of wheel damper electronics - Vehicle diagnostic tester.
  • Perform basic setting of headlights.

Self-levelling suspension

Removing and installing rear left vehicle level sender - G76- , multi-link suspension, four-wheel drive

Special tools and workshop equipment required

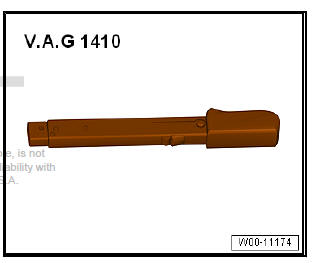

  • Torque wrenches - V.A.G 1410-

Self-levelling suspension

Removing

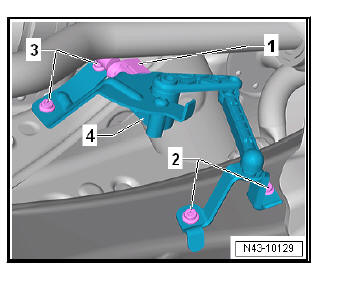

  • Unplug the electrical connector -1-.
  • Unscrew the bolts -2- and -3-.
  • Take out rear left vehicle level sender - G76- -4-.

Installing

Carry out installation in the reverse sequence, noting the following:

Lever on vehicle level sender must face towards outside of vehicle.

  • Perform basic setting of wheel damper electronics - Vehicle diagnostic tester.
  • Perform basic setting of headlights.

Self-levelling suspension
