Seat Leon >> Removing and installing anti-roll bar
SEAT Leon Service and Repair Manual / Running gear, axles, steering / Rear suspension / Anti-roll bar / Removing and installing anti-roll bar
Special tools and workshop equipment required

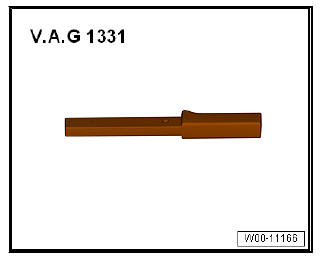

- Torque wrenches - V.A.G 1331-
Removing
- Remove rear wheels.
Note The following steps are described for the left side of the vehicle.
The procedure for the right side of the vehicle is identical.
- Remove the coil springs.

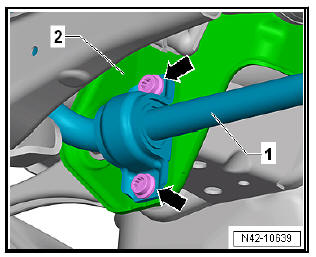

- Remove bolts -arrows- for anti-roll bar -1-.

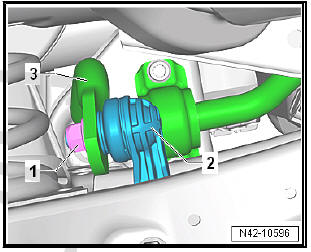

- Unscrew nut -1- securing coupling rod -2-.
- Pull coupling rod -2- out of anti-roll bar -3-.
- Remove anti-roll bar -3- from subframe.
Vehicles with four wheel drive
- Guide out anti-roll bar over exhaust system.
Installing
Carry out installation in the reverse sequence, noting the following:

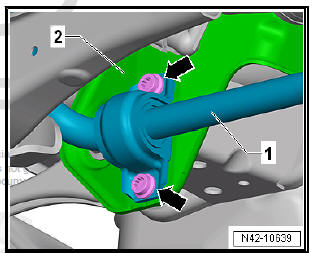

- Tighten bolts -arrows- for anti-roll bar -1- evenly on subframe -2-.
Assembly overview - anti-roll bar
Assembly overview - anti-roll bar, multi-link suspension, front-wheel drive - Lower transverse arm - Nut Always renew after removing 20 Nm +180º - Connecting rod Removing a ...Removing and installing coupling rod
