Seat Leon >> Dust and pollen filter for passenger compartment: replace

SEAT Leon Service and Repair Manual / Maintenance / Description of work / Dust and pollen filter for passenger compartment: replace

Special tools and workshop equipment required

  • Lever - 3409-

Maintenance

  • Cover plate - T10532-
  • Conventional vacuum cleaner

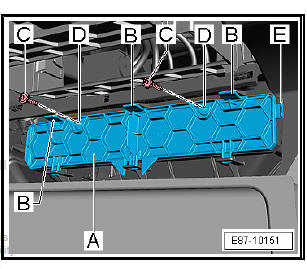

Should the retaining tabs -B- break (both on the air conditioning unit as well as the cover -A-), the cover -A- can also be attached to the air conditioning unit with 2 self-tapping screws -C- (e.g. 3.5 x 16 mm or 4.0 x 16 mm - Parts catalogue ).

For this purpose two holes are to be drilled in the cover -A- at both attachment points marked with -D- with a diameter of 4.5 mm.

The cover -A- can be equipped with a hook -E- which is used for removing the dust and pollen filter.

Maintenance

NOTICE Depending on equipment there are various filters for this vehicle.

In vehicles with manual air conditioning control, the dust and pollen filter is installed ex-factory "without" activated carbon filter.

When servicing a dust and pollen filter with activated charcoal - Parts catalogue can be fitted in these vehicles.

The activated carbon filter takes over the function of a dust and pollen filter, but also filters dangerous gaseous pollutants such as ozone, benzene or nitrogen dioxide, etc.

The activated charcoal layer in the dust and pollen filter becomes saturated after a certain length of time.

A saturated filter can no longer absorb any hazardous substances.

Removing

  • Switch off ignition and all electrical consumers and take out ignition key.
CAUTION

Proceed cautiously with the property of customers in the glove compartment.

  • Open the glove compartment, remove the customers property and cover the surface with paper.

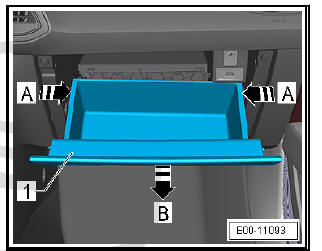

  • Press inwards on the sides -arrow A- and move the glove compartment -1- to the lowest position -arrow B- (service position).

Maintenance

Vehicles with shelf in glove compartment:

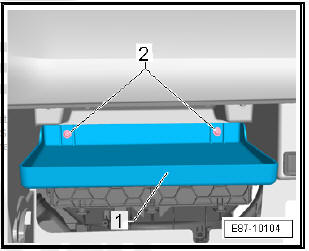

  • Unscrew the screws -2- and remove the shelf -1-.

Vehicles with control unit 1 for information electronics - J794- in the glove compartment:

  • Carefully pull the decorative trim panel off the control unit for 'Information Electronics 1' - J794- .

Continuation for all vehicles:

Maintenance

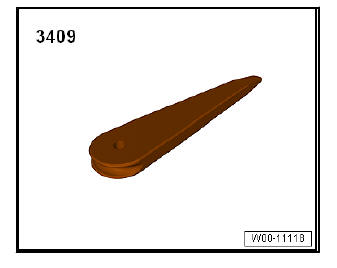

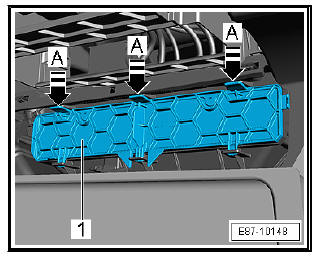

  • Carefully release the retaining tabs -arrows A- with the lever - 3409- .
  • Swivel the cover -1- backwards and remove.

Maintenance

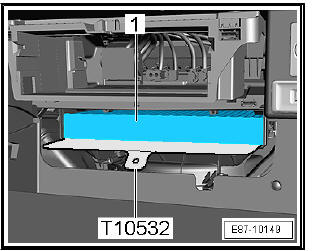

  • Push the cover plate - T10532- under the pollen filter -1-.

Maintenance

  • Hook the cover -1- of the dust and pollen filter -2- in -arrow B-.
CAUTION

Danger of damaging the fresh air blower - V2- when eliminating impurities from the dust and pollen filter.

Take care to ensure that the cover plate - T10532- is not removed as well.

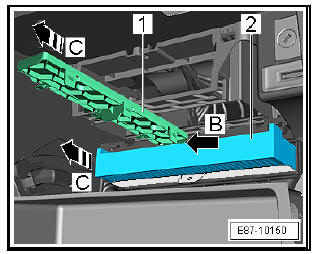

  • Take out the dust and pollen filter -2- with the cover -1- in -the direction of arrow C-.
  • Using a conventional vacuum cleaner, remove residual dirt and leaves from the cover plate - T10532- .

Maintenance

NOTICE Observe environmental requirements for disposal.

Installation

Install in the reverse order to removal. During this step, observe the following:

NOTICE If you assume that impurities have entered the fresh air blower - V2- , remove and clean the fresh air blower.

  • Observe installation position of dust and pollen filter.
  • Switch on the ignition and check the operation of the fresh air turbine - V2- .
