Seat Leon >> Removing and installing evaporator temperature sensor - G308-

Note Vehicles with air conditioner only, opening in heater is sealed off on vehicles with heater.

Removal:

  • Turn off the ignition and all electricity consumers.

Vehicles without access and start authorisation system

  • Remove ignition key, if fitted.

Vehicles with access and start authorisation system

  • Store ignition key outside the vehicle to prevent the ignition from being switched on unintentionally.

Continued for all vehicles

  • Remove glove compartment.

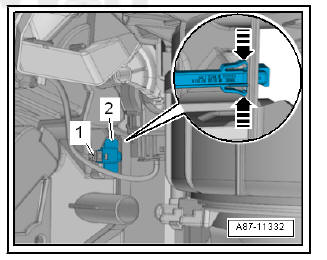

  • Use a narrow screwdriver to release the retainer tabs -arrows-.
  • Remove the evaporator temperature sensor - G308- -2- from the housing.
  • Detach the electrical connector -1-.

Installing

Installation is carried out in the reverse order.
