Seat Leon >> Removing and installing damper weight for refrigerant line, low-pressure side

SEAT Leon Service and Repair Manual / Heating and air conditioning / Air conditioning system / Refrigerant circuit / Removing and installing damper weight for refrigerant line, low-pressure side

Special tools and workshop equipment required

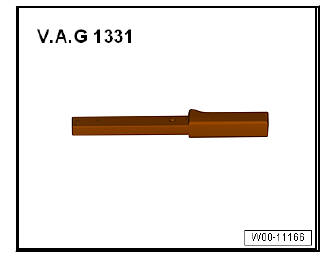

  • Torque wrench - V.A.G 1331/- (5 ... 50 Nm)

Air conditioning system

Removal:

Note

  • It is not necessary to remove the refrigerant line in order to remove and install the damper weight.

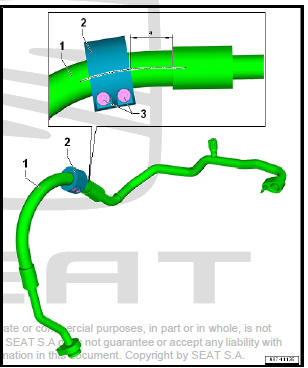

  • Depending on the vehicle model, type of refrigerant lines and production period, an additional damper weight -2- may be installed on refrigerant line -1- .



  • Remove the hollow bolts -3-.
  • Remove damper weight -2- from refrigerant line on low-pressure- side -1-.

Installing

Install in reverse order of removal; note the following.

  • Fit damper weight -2- on refrigerant line on low-pressure-side -1-. Take specified dimension -a- = 30 +- 5 mm into account while doing so.
  • Tighten bolts -3-.

Air conditioning system

Note

  • Ensure that the damper weight -2- is firmly seated on the refrigerant line and that it won't make contact with any other components during any condition.
  • The refrigerant line on the low-pressure side -1- must not be pinched due to the additional weight -B-.

Tightening torque:

Air conditioning system
