Identification of heater and air conditioning unit

Identification of Valeo heater and air conditioning unit

At the start of production, this vehicle was only fitted with "Valeo" heaters and air conditioning units. At a later date, this vehicle may also be fitted with "Denso" heaters and air conditioning units (introduction not yet finalised).

Note Pay attention to correct assignment when replacing components.

The combination of different makes of component is not permitted.

Technical data

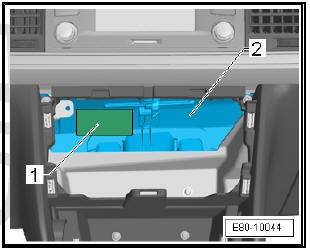

  • The manufacturer's sticker -1- on the heater and air conditioning unit -2- can only be seen after removing the operating unit.

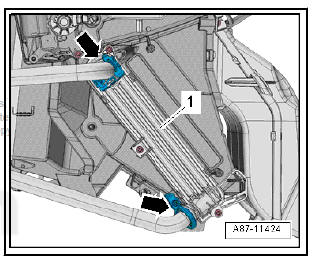

  • The coolant pipe separation point -arrows- is located directly at the heat exchanger -1-.

Technical data

Identification of Denso heater and air conditioning unit

At the start of production, this vehicle was only fitted with "Valeo" heaters and air conditioning units. At a later date, this vehicle may also be fitted with "Denso" heaters and air conditioning units (introduction not yet finalised).

Note Pay attention to correct assignment when replacing components.

The combination of different makes of component is not permitted.

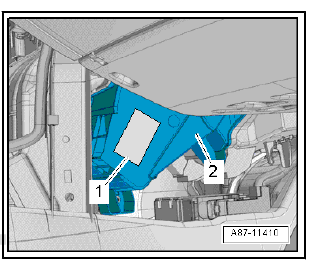

  • The manufacturer's sticker -1- on the heater and air conditioning unit -2- can only be seen after removing the centre console.

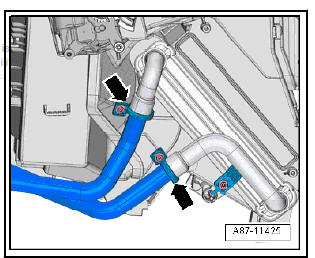

  • The coolant pipe separation point -arrows- is integrated into the coolant pipes.

Technical data
