Seat Leon >> Connectors

Unplugging door separating connector (left-side)

Removing

Note The removal and installation procedure is the same on both sides.

  • Open the door.

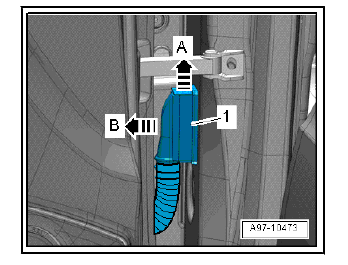

  • Release catch in direction of -arrow A- and detach pin from door -1- towards the outside -arrow B-.

Unplugging door separating connector (right-side)

Note The removal and installation procedure is the same on both sides.

Removing and installing connector point at A-pillar (left-side)

Removing

  • With the ignition switched off, disconnect battery earth cable.
  • Remove lower A-pillar cover .

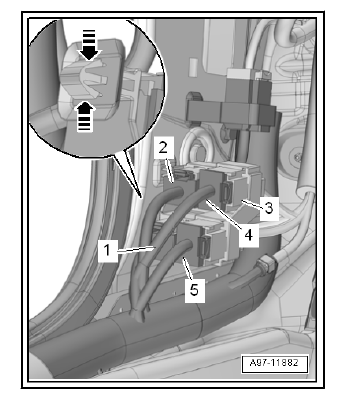

  • Release retaining clips -arrows- and disengage connector point -3- from A-pillar.
  • Disconnect connectors -1-, -2-, -4- and -5-.

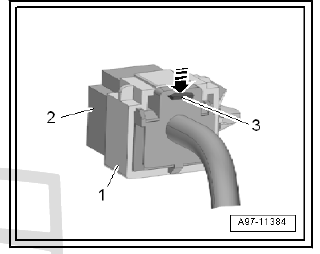

  • Release retaining clip -3- -arrow- and press connector -2- out of retainer -1-.

Note The exact assignment should be gleaned from the latest current flow diagram.

Installing

Installation is carried out in the reverse sequence; note the following:

  • Connect battery.

Removing and installing connector point at A-pillar (right-side)

Note The removal and installation procedure is the same on both sides.

Repairing electrical wiring harnesses and plug-in connections

Repairs to wiring harnesses and connectors

Note All instructions and notes regarding this chapter are available under.

Repairing connector housings and electrical connectors

Note All instructions and notes regarding this chapter are available under.

Repairing aerial wires

Note All instructions and notes regarding this chapter are available under.

Vehicle diagnostic, testing and information systems

Note All instructions and notes regarding this chapter are available under.

    Control unit for the onboard network - J519- : removal and fitting
