Seat Leon >> Removing and installing main fuse holder in E-box

Removing

  • With the ignition switched off, disconnect battery earth cable.
  • Remove fuse holder B .

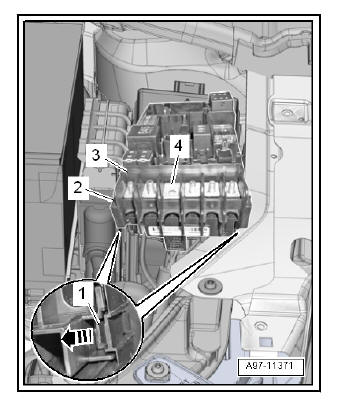

  • Take securing bar -4- out of fuse holder B upwards.
  • Unlatch mounting clip -1- in -arrow direction- and remove fuse holder A -2- downward out of fuse holder B -3- .

Installing

Installation takes place in reverse order.

Wiring

Removing and installing relay and fuse holder behind dash panel on driver side

Removing

  • With the ignition switched off, disconnect battery earth cable.
  • Remove side dash panel cover.
  • Remove driver's side footwell cover .

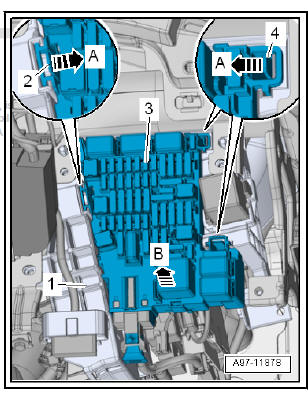

  • Release catches -2- and -4- -arrow A-.
  • Pull fuse holder C -3- towards rear -arrow B- out of bracket -1-.
  • Disconnect electrical wiring.

Wiring

Note The exact assignment should be gleaned from the latest current flow diagram.

Installing

Installation takes place in reverse order.

    Removing and installing relay and fuse holder in E-box
    Removing With the ignition switched off, disconnect battery earth cable. Remove air filter housing . Press release tabs -arrow- and detach cover -1- for electronics box (engine compartment). ...
