Removing

  • With the ignition switched off, disconnect battery earth cable.
  • Remove air filter housing .

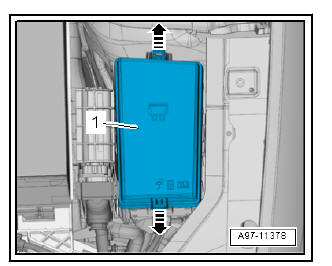

  • Press release tabs -arrow- and detach cover -1- for electronics box (engine compartment).

Wiring

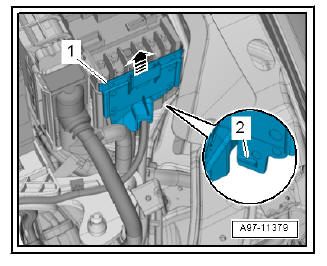

  • Release retaining tab -2- with a screwdriver and pull off cover (front) -1- upwards -arrow-.
  • Mark assignment of electrical wiring at screw connections for re-installation.

Wiring

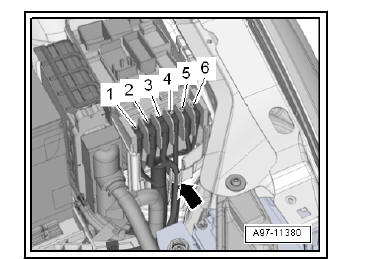

  • Remove nuts -1, 2, 4, 5 and 6- and screw -3- and expose electrical lines -arrow-.
  • Cut through cable tie (bottom) on wiring harness.

Wiring

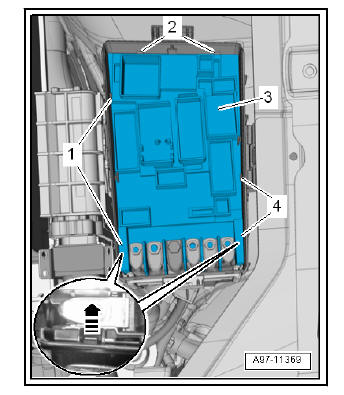

  • Unlatch catch mechanisms -1, 2 and 4- in -the direction of the arrow- , remove fuse holder B -3- and place to the side.

Installing

Installation is carried out in the reverse sequence; note the following:

  • Fit and secure electrical wiring to fuse holder A according to markings made earlier.
  • Connect battery.

Wiring
