Seat Leon >> Interior light / front reading lamp unit: removing and installing

SEAT Leon Service and Repair Manual / Electrical system / Lights, bulbs, switches - interior / Controls / Interior light / front reading lamp unit: removing and installing

Special tools and workshop equipment required

  • Lever - U30800-

Removing

  • Switch off ignition and all electrical consumers.

Vehicles without access and start authorisation system

  • Remove ignition key, if fitted.

Vehicles with access and start authorisation system

  • Store the ignition key outside the vehicle to prevent the ignition from being switched on unintentionally.

Continued for all vehicles

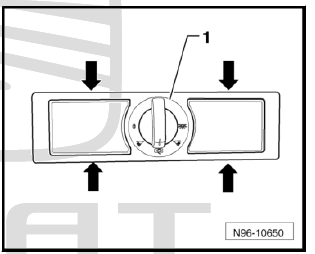

  • Unlatch the snap tabs -arrow- with the lever - U30800- or a suitable screwdriver, and remove the back interior light/reading light from the roof trim taking care of the connection lines.

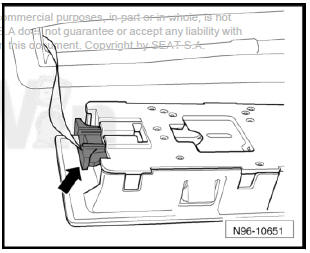

  • Release and detach connector -arrow- and remove rear interior light - W43- .

Lights, bulbs, switches - interior

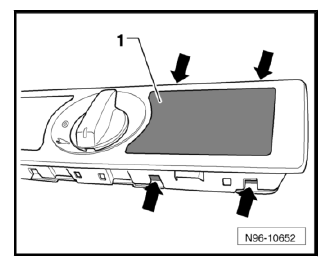

  • Release the 4 locking lugs -arrows- each of lens -1- and remove lens from interior light by lifting it straight upwards.

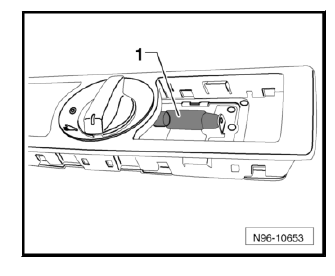

  • Remove bulb -1- from holder.

Installing

Installation is carried out in reverse order.
