Seat Leon >> Removing and installing interior light/ reading light (front)

SEAT Leon Service and Repair Manual / Electrical system / Lights, bulbs, switches - interior / Controls / Removing and installing interior light/ reading light (front)

Removing and installing interior light/ reading light (front), without alarm system

Special tools and workshop equipment required

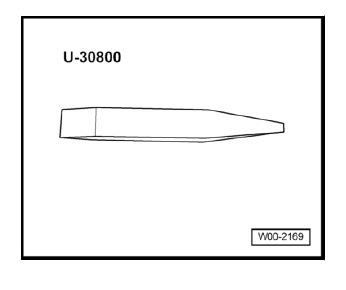

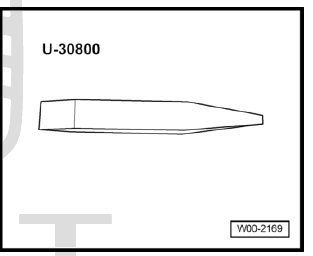

  • Lever - U30800-

Removing

  • Switch off ignition and all electrical consumers.

Vehicles without access and start authorisation system

  • Remove ignition key, if fitted.

Vehicles with access and start authorisation system

  • Store the ignition key outside the vehicle to prevent the ignition from being switched on unintentionally.

Continued for all vehicles

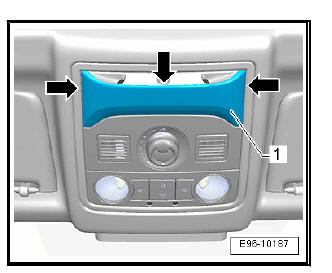

  • Remove the trim -1- with the lever - U30800- from the inserts, with the -arrows- .

Lights, bulbs, switches - interior

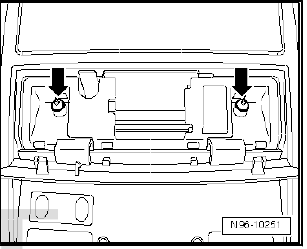

  • Remove both securing screws -arrows- and remove the interior light from the roof module.

  • Remove the interior light from the roof module.

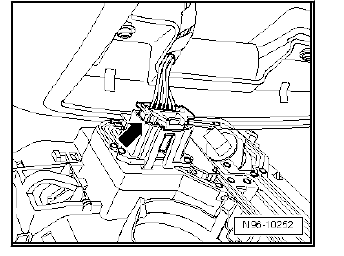

  • Disconnect connectors -arrows-.

Installing

Installation is carried out in reverse order.

Removing and installing front interior and reading lights, vehicles without panorama sliding sunroof

Special tools and workshop equipment required

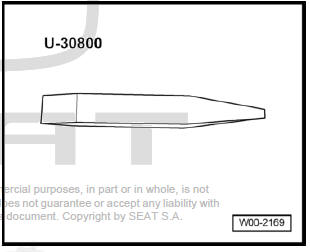

  • Lever - U30800-

Removing

  • Switch off ignition and all electrical consumers.

Vehicles without access and start authorisation system

  • Remove ignition key, if fitted.

Vehicles with access and start authorisation system

  • Store the ignition key outside the vehicle to prevent the ignition from being switched on unintentionally.

Continued for all vehicles

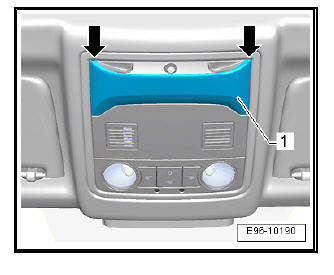

  • Remove the trim -1- with the lever - U30800- from the inserts, with the -arrows- .

Lights, bulbs, switches - interior

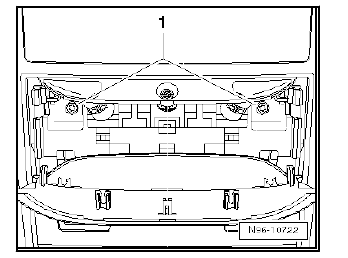

  • Remove both securing screws -1- and remove the interior light from the roof module.

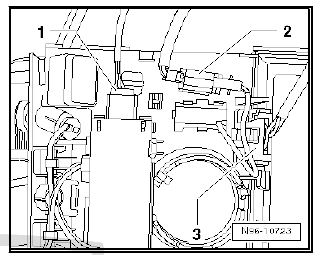

  • Unplug the three plug connectors -1-, -2- and -3-.

Installing

Installation is carried out in reverse order.

Removing and installing front interior and reading lights, vehicles with panorama sliding sunroof

Special tools and workshop equipment required

  • Lever - U30800-

Lights, bulbs, switches - interior

Removing

  • Switch off ignition and all electrical consumers.

Vehicles without access and start authorisation system

  • Remove ignition key, if fitted.

Vehicles with access and start authorisation system

  • Store the ignition key outside the vehicle to prevent the ignition from being switched on unintentionally.

Continued for all vehicles

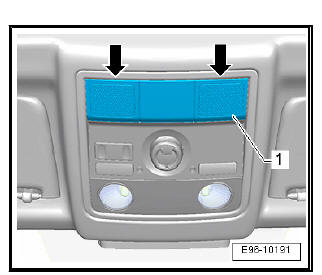

  • Remove the trim -1- with the lever - U30800- from the inserts, with the -arrows- .

Lights, bulbs, switches - interior

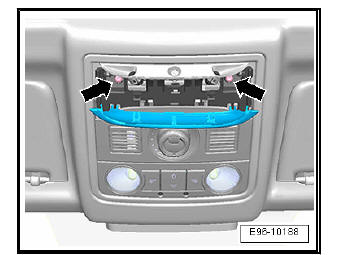

  • Remove both securing screws -arrows- and remove the interior light from the roof module.

Lights, bulbs, switches - interior

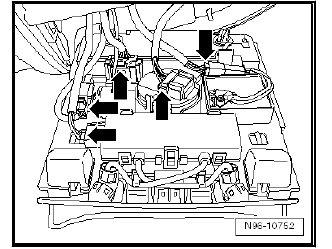

  • Dependant on equipment, release connectors -arrows-, disconnect and remove interior light.

Installing

Installation is carried out in the reverse order.
