Seat Leon >> Soundaktor

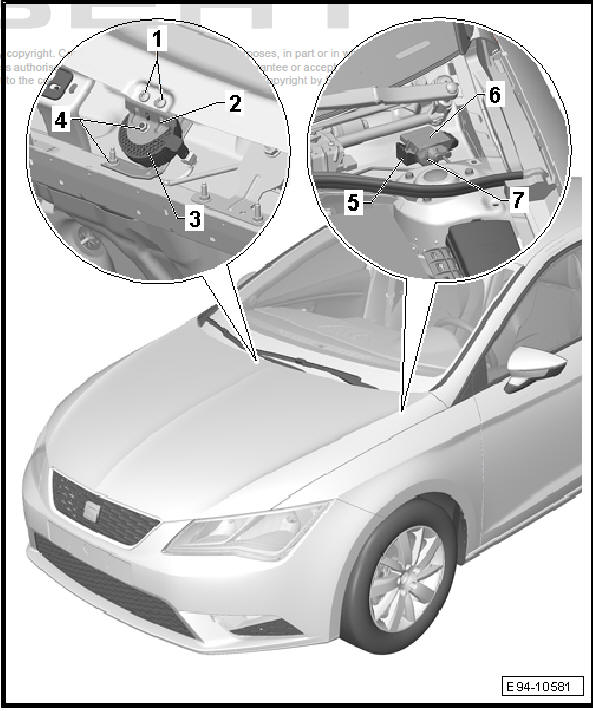

Assembly overview - Soundaktor

Lights, bulbs, switches - exterior

  1. - Screw
    • 2 units.
    • 5.5 Nm
  2. - Mount for Soundaktor - R214-
    • Removing and installing the resonator holder
  3. - Actuator for structure-borne sound - R214-
    • Removal and installation
  4. - Nut
    • 2 units.
    • 8 Nm
  5. - Bracket of the control unit for structure-borne sound - J869-
    • Remove and install the control unit holder for structure-borne sound - J869-
  6. - Control unit for structureborne sound - J869-
    • Structure-borne sound control unit: removing and installing - J869-
  7. - Nut
    • 1 units.
    • 4.5 Nm

Structure-borne sound control unit - J869- : removing and installing

Removing

  • Switch off ignition and all electrical consumers.

Vehicles without access and start authorisation system

  • Remove ignition key, if fitted.

Vehicles with access and start authorisation system

  • Store the ignition key outside the vehicle to prevent the ignition from being switched on unintentionally.

Continued for all vehicles

  • Remove plenum chamber cover .

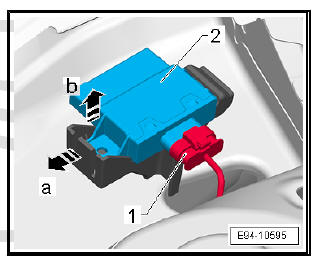

  • Disconnect the connector -1- on the control unit for structureborne sound - J869- .
  • Undo the retaining clips in the -direction of arrow a- in order to be able to remove the control unit for structure-borne sound - J869- in the -direction of arrow b-.

Lights, bulbs, switches - exterior

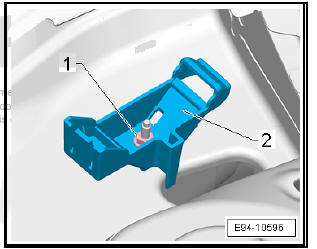

Undo the fixing nuts -1- from the bracket of the control unit for structure-borne sound - J869- .

  • Remove the bracket -2- for the plenum chamber.

Installing

  • Install in reverse order.

Lights, bulbs, switches - exterior

Actuator for structure-borne sound - R214- : removing and installing

Removing

  • Switch off ignition and all electrical consumers.

Vehicles without access and start authorisation system

  • Remove ignition key, if fitted.

Vehicles with access and start authorisation system

  • Store the ignition key outside the vehicle to prevent the ignition from being switched on unintentionally.

Continued for all vehicles

  • Remove plenum chamber cover .

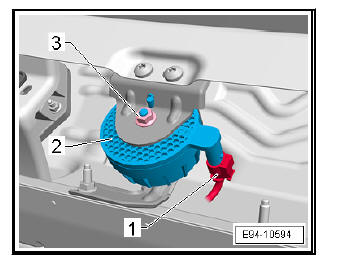

  • Disconnect the connector -1- on the actuator for structureborne sound - R214- .
  • Remove nut -3-.
  • Remove the actuator for structure-borne sound - R214- from the plenum chamber.

Installation:

Installation is carried out in the reverse sequence.

Lights, bulbs, switches - exterior

Remove and install the holder for actuator for structure-borne sound - R214-

Removing

  • Remove windscreen .

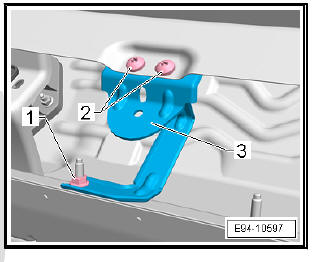

  • Remove nut -1-.
  • Remove bolts -2-.
  • Remove the bracket -3- for the plenum chamber.

Installation:

Installation is carried out in the reverse sequence; note the following:

  • Install windscreen.
