Seat Leon >> Assembly overview - headlight washer system

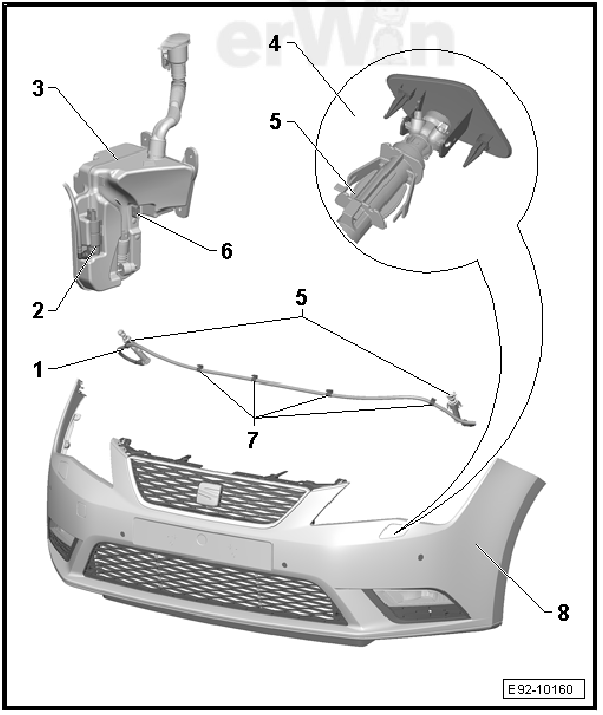

Assembly overview - headlight wiper system, vehicles without additional left cooler

  1. - Flexible hose
  2. - Headlamp washer pump - V11-
    • Removal and installation
  3. - Windscreen and headlamp washer reservoir
    • Removal and installation
  4. - Cap
    • Removal and installation
  5. - Spray jet
    • Removal and installation
    • Adjusting
    • Breather
  6. - Washer fluid level sender - G33-
    • Cannot be removed
    • In the event of a fault, it is not possible to replace washer fluid level sender - G33- separately.
  7. - Clips
    • for fixing the hose
    • Repair of hoses
  8. - Front bumper cover
    • Install bumper cover (front)

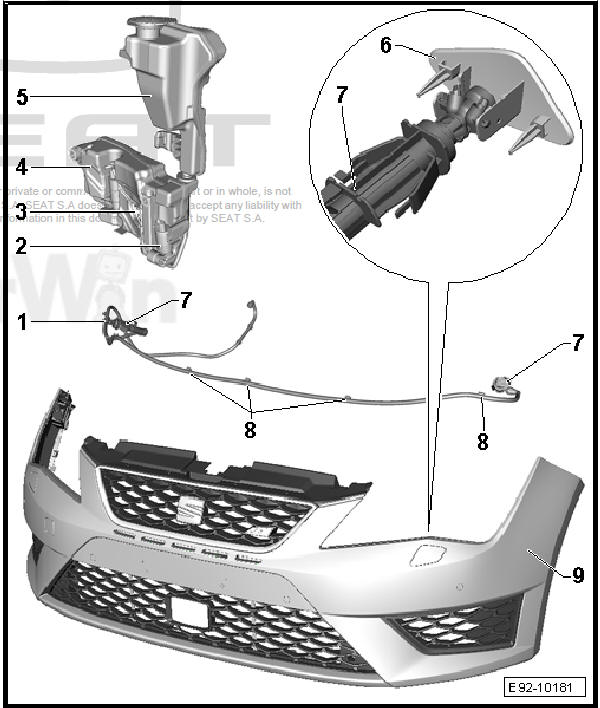

Assembly overview - headlight wiper system, vehicles with additional left cooler

Windscreen wash/wipe system

  1. - Flexible hose
  2. - Headlamp washer pump - V11-
    • Removal and installation
  3. - Washer fluid level sender - G33-
    • Removal and installation
  4. - Windscreen and headlamp washer reservoir
    • Removal and installation
  5. - Filler neck for the window and headlight washer system reservoir
    • Removal and installation
  6. - Cap
    • Removal and installation
  7. - Spray jet
    • Removal and installation
    • Adjusting
    • Breather
  8. - Clips
    • for fixing the hose
    • Repair of hoses
  9. - Front bumper cover
    • Install bumper cover (front)
    Removing and installing headlight washer system V11 pump
    Installing and removing the headlight washer system V11 pump, vehicles without additional left cooler Special tools and workshop equipment required Rear shelf - T20173- Removing Place ...
