Seat Leon >> Alternator: repairs

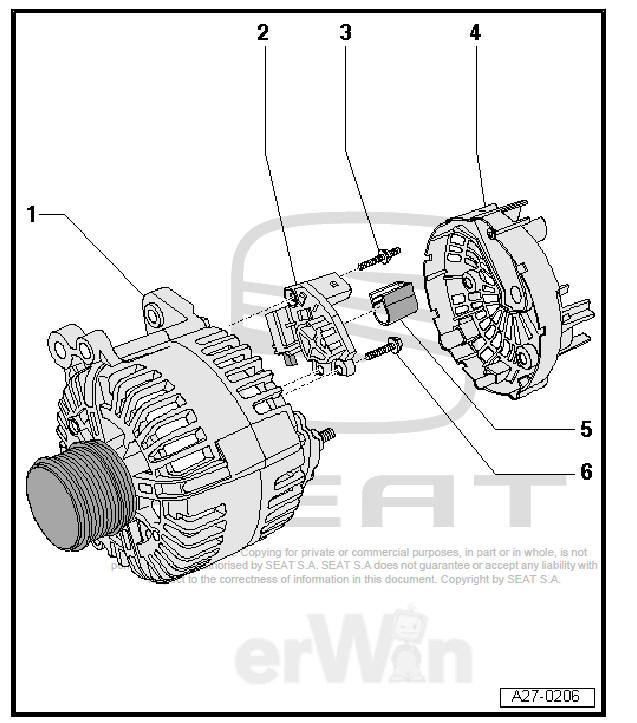

Assembly overview - Valeo alternator

Starter, current supply, CCS

  1. - Alternator
  2. - Voltage regulator
    • Removal and installation
    • Checking brushes
  3. - Double bolt 2 Nm
  4. - Cover
  5. - Protective cap
  6. - Hexagon bolt - 2 Nm

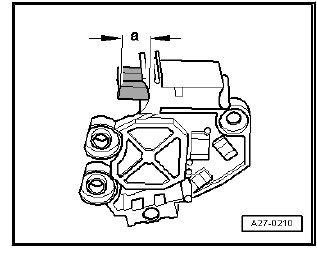

Carbon brushes: testing - Valeo alternator

  • Remove voltage regulator
  • Check length -a- of brushes.
    • Wear limit: 5 mm.

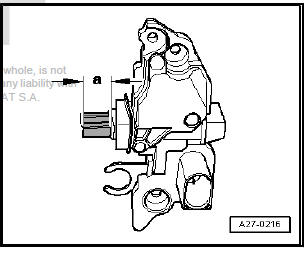

Carbon brushes: testing - Bosch alternator

  • Remove voltage regulator.
  • Check length -a- of brushes.
    • Wear limit: 5 mm.

Starter, current supply, CCS

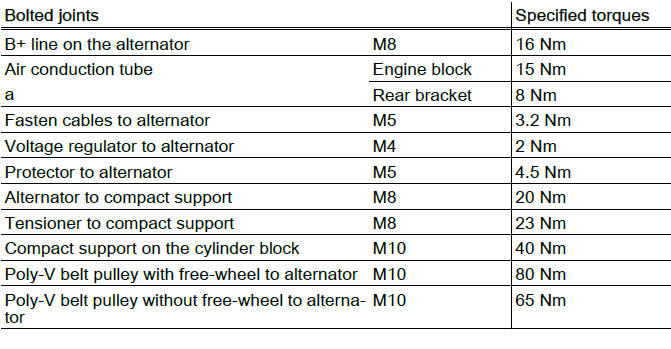

Tightening torques: Alternator

Starter, current supply, CCS
