Seat Leon >> Removing and installing earth cable with battery monitor control unit - J367-

SEAT Leon Service and Repair Manual / Electrical system / Starter, current supply, CCS / Battery / Removing and installing earth cable with battery monitor control unit - J367-

Special tools and workshop equipment required

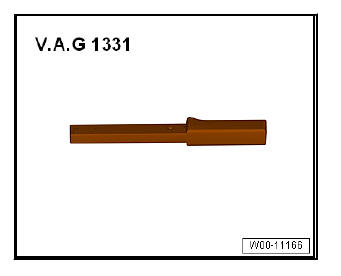

  • Torque wrenches - VAG 1331-

Starter, current supply, CCS

Removing

  • Switch off ignition and all electrical consumers.

Vehicles without access and start authorisation system

  • Remove ignition key, if fitted.

Vehicles with access and start authorisation system

  • Store the ignition key outside the vehicle to prevent the ignition from being switched on unintentionally.

Continued for all vehicles

  • Open cover in heat insulation sleeve.

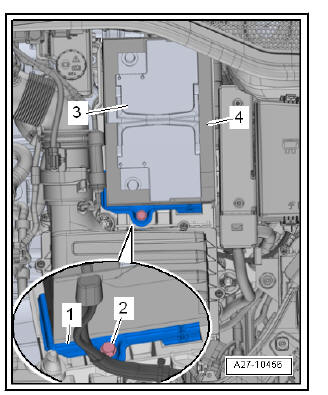

  • Remove bolt -2- on battery retainer plate -1-.
  • Remove battery -3- from the bracket and push forwards.

Starter, current supply, CCS

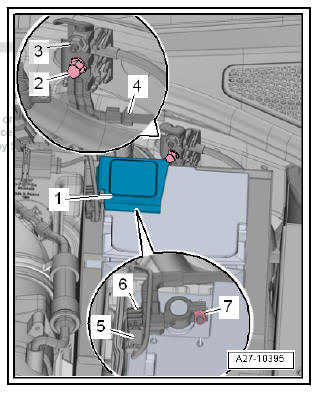

  • Open cover -1- over negative battery terminal.
  • Unplug the electrical connector -5-.
  • Slacken off nut -7- several turns and disconnect battery clamp of earth cable from negative battery terminal.
  • Unbolt earth wire -3-.
  • Remove nut -2- and detach earth cable -4- with battery monitor control unit - J367- -6-.

Starter, current supply, CCS

Installing

Installation is carried out in the reverse sequence; note the following:

Adapting the battery monitor control - J367- unit

  • Connect vehicle diagnostic tester.
  • Adapt the battery monitor control - J367- .
    Removing and installing battery tray
