Seat Leon >> Battery

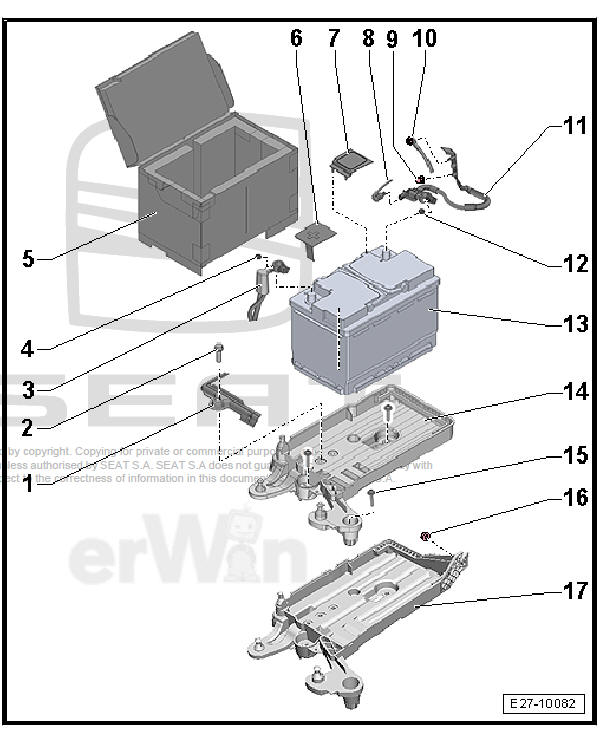

Assembly overview - battery

Starter, current supply, CCS

  1. - Retainer
  2. - Screw
    • 15 Nm
  3. - Positive wire
    • Disconnecting and connecting
  4. - Nut
    • 6 Nm
  5. - Heat shield
  6. - Cover for positive terminal
  7. - Cover for negative terminal
  8. - Electrical wire
    • For battery monitor control unit - J367-
    • Observe correct sequence when connecting earth cable
  9. - Nut
    • 9 Nm
  10. - Earth wire
    • 9 Nm
  11. - Earth wire
    • With battery monitor control unit - J367-
    • Disconnecting and connecting
    • Removal and installation
  12. - Nut
    • 6 Nm
  13. - Battery:
    • Disconnecting and connecting
    • Removal and installation
  14. - Battery tray version 1
    • Removal and installation
  15. - Screw
    • 3 piece fastener of battery tray
    • 9 Nm
  16. - Nut
    • 9 Nm
  17. - Battery tray version 2
    • Removal and installation
Battery: removing and installing
Removing Switch off ignition and all electrical consumers. Vehicles without access and start authorisation system Remove ignition key, if fitted. Vehicles with access and start authorisa ...
