Seat Leon >> Removing and installing the front wheel housing spoiler

Special tools and workshop equipment required

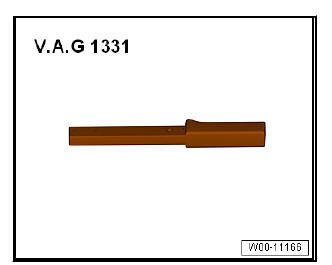

  • Torque wrench - V.A.G 1331-

Exterior equipment

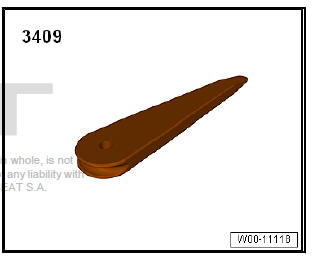

  • Release lever - 3409-

Exterior equipment

Removing

Caution

The following does not have to be removed to remove the front wheel housing spoiler:

  • Noise insulation

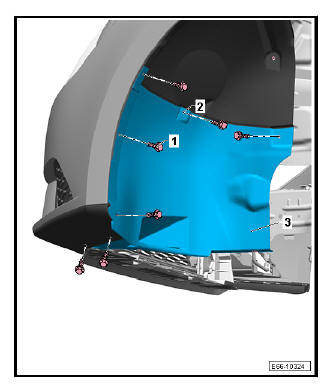

  • Remove screws -1-.

Note If the noise insulation is fitted, so too must the screws affixing the noise insulation to the wheel housing spoiler be removed.

  • Remove wheel house spoiler -3-.

fitting

Fit in reverse order from removal, remembering the following:

  • Only if damaged: replace quick locking nuts.
  • Use the tightening torque of the screws.

Exterior equipment

Rear wheel housing spoiler removing and installing

Special tools and workshop equipment required

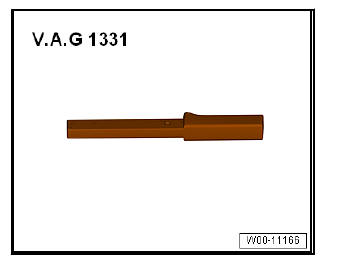

  • Torque wrench - V.A.G 1331-

Exterior equipment

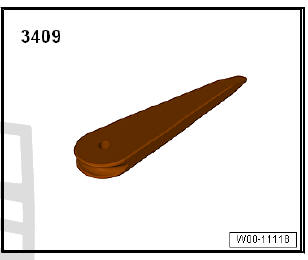

  • Release lever - 3409-

Exterior equipment

Removing

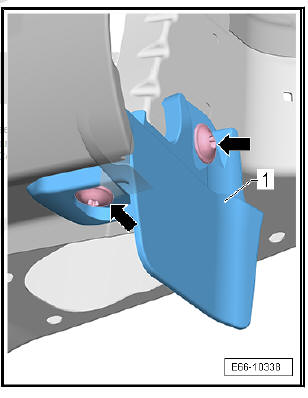

  • Remove the rear wheel.
  • Remove bolts -arrows-.
  • Remove wheel house spoiler -1-.

fitting

Fit in reverse order from removal, remembering the following:

Specified torques

Overview Tightening torque (in Nm)
Mounting screws for rear wheel housing spoiler 2.2 +- 0.3
  • Tighten wheel lugs with tightening torque
