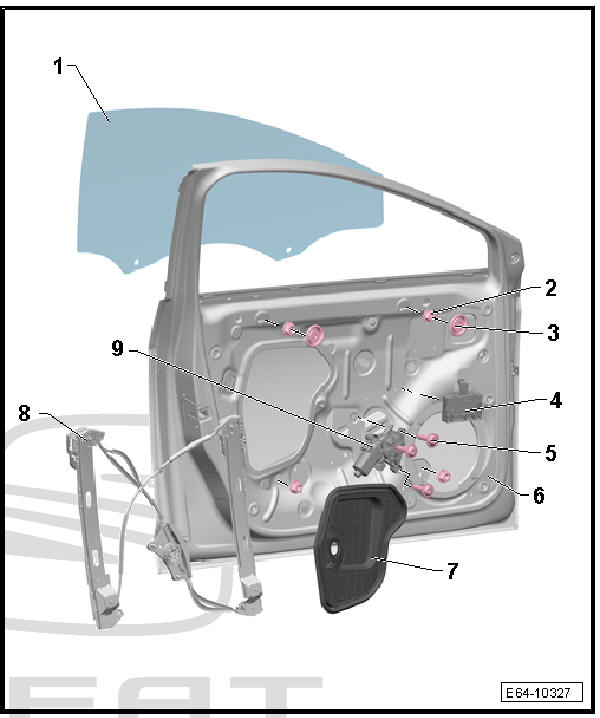

Seat Leon >> Exploded view - front door window

Glazing

  1. - Front door windows
  2. - Nut
    • 4 off
    • 6+- 0.5 Nm
  3. - Sealing plug
    • 5 off
  4. - Driver door control unit
    • Driver door control unit - J386-
  5. - Bolt.
    • 3 off
    • 3+- 0.5 Nm
  6. - Front door
  7. - Inside protective cover
  8. - Window regulator
  9. - Electric window riser motor
    • Window riser motor control unit is not included in the window riser motor.

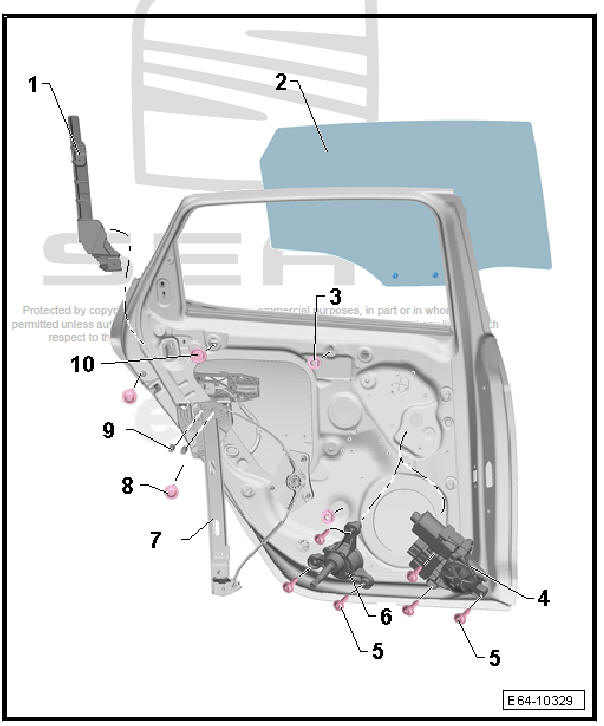

Assembly Overview - rear door window

Glazing

  1. - Window guide bracket
  2. - Rear door glass
  3. - Nut
    • 2 off
    • 6 Nm
  4. - Electric window riser motor
    • With controller mounted in the motor
  5. - Bolt.
    • 3 off
    • 3.5+- 0.5 Nm
  6. - Manual actuating mechanism
    • Only for mechanical window riser
  7. - Window regulator
  8. - Bolt.
    • 2 off
    • 3.5 Nm
  9. - Window mounts
    • 2 off

Comprising:

  • Expanding grommet
  • Expanding bolts
  1. - Sealing plug
    • 4 off
    Removing and installing front door window
    Special tools and workshop equipment required Release lever - 3409- Removing Note The sequences below describe the processes for removal and installation for the left side of the vehicle. ...
