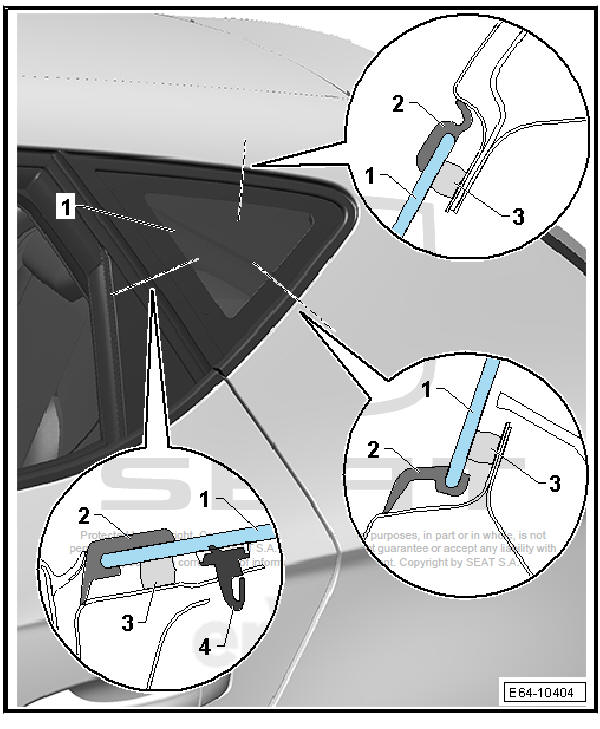

Seat Leon >> Exploded view - side window (4-door models)
SEAT Leon Service and Repair Manual / General body repairs, exterior / Glazing / Side window / Exploded view - side window (4-door models)
- - Side window
- With ceramic coating
| Caution Do not damage when dealing with the window |
- - Surrounding profile
- - PUR adhesive sealant
- Bead cross section:
- Width = 7 mm
- Height = 11 mm (including base sealant and the rest of the material that may be on the glass)
- Bead cross section:
| Caution Position a new window of the adhesive material (PUR) at the intended marking |
- - Fixing block

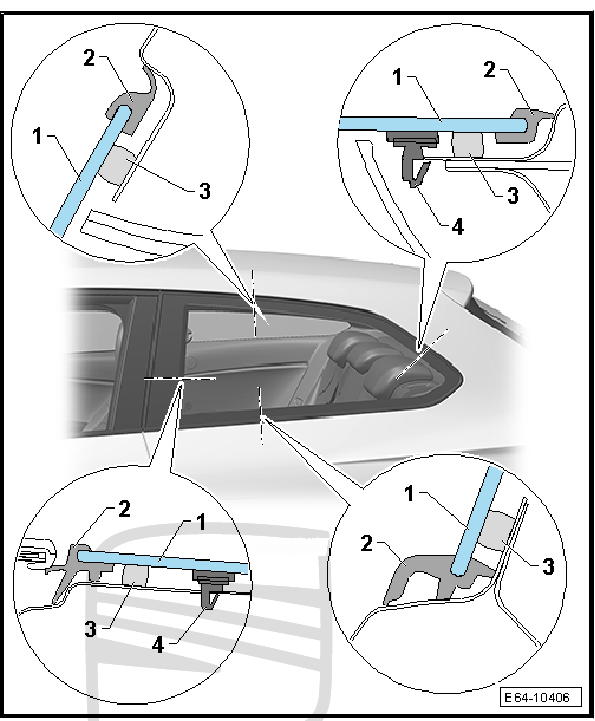

Exploded view - side window (2-door models)
- - Side window
- With ceramic coating
| Caution Do not damage when dealing with the window |
- - Surrounding profile
- - PUR adhesive sealant
- Bead cross section:
- Width = 7 mm
- Height = 11 mm (including base sealant and the rest of the material that may be on the glass)
- Bead cross section:
| Caution Position a new window of the adhesive material (PUR) at the intended marking |
- - Fixing block
- 3 off

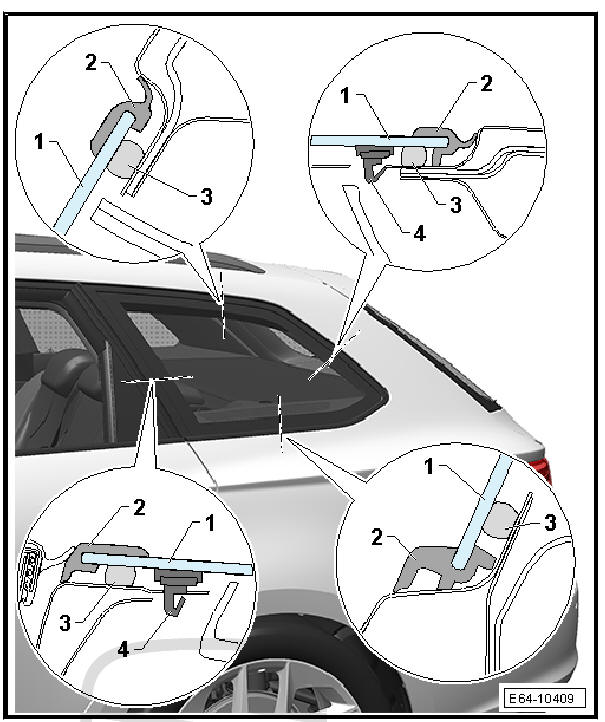

Exploded view - side window (ST model)
- - Side window
- With ceramic coating
| Caution Do not damage when dealing with the window |
- - Surrounding profile
- - PUR adhesive sealant
- Bead cross section:
- Width = 7 mm
- Height = 11 mm (including base sealant and the rest of the material that may be on the glass)
- Bead cross section:
| Caution Position a new window of the adhesive material (PUR) at the intended marking |
- - Fixing block
- 3 off
Side window
...
Side window, 5 door model: removal and installation
Special tools and workshop
equipment required
Window sealant pistol -
SAT 5350-
Cable holder knob - VAG
1351/1-
Removal equipment - VAG
1474B-
Window extraction kit -
VAG 1755-
Ca ...
See also:
Removing and installing interior aerial 1
for entry and start authorisation - R138-
Special tools and workshop equipment required
Lever - 80 200-
Removing
Switch off ignition and all electrical consumers.
Vehicles without access and start authorisation system
Remo ...
