Seat Leon >> Exploded view - rear window

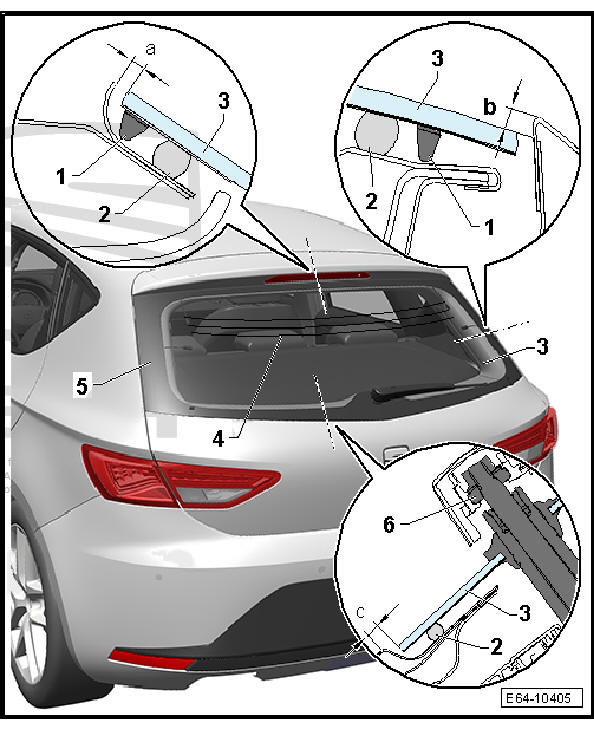

Exploded view - rear window (2 and 4-door models)

Glazing

  1. - Spacer cap
    • Distributed in the scope of the window
  2. - PUR adhesive sealant
    • Bead cross section:
      • Width = 7 mm
      • Height = 11 mm (including base sealant and the rest of the material that may be on the glass)
Caution

Position a new window of the adhesive material (PUR) at the intended marking.
  1. - Rear window
  2. - Thread
    • From electrically conductive material.
    • For the heating system of the rear window.
  3. - Ceramic layer
Caution

Do not damage when dealing with the window
  1. - Rear windscreen washer motor

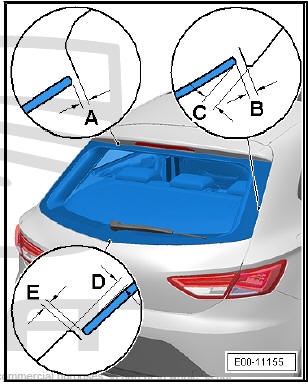

Dimensions of 2-door rear window

  1. - 2.5 +- 1.0 mm
  2. - 3.5 +- 0.5 mm
  3. - 4.4 +- 1.0 mm
  4. - 4.2 +- 1.0 mm
  5. - 2.5 +- 1.0 mm

Glazing

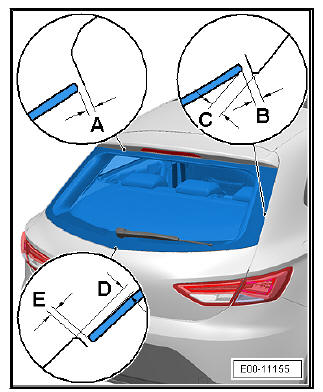

Dimensions of 4-door rear window

  1. - 2.5 +- 1.0 mm
  2. - 3.5 +- 0.5 mm
  3. - 4.7 +- 1.0 mm
  4. - 3.5 +- 1.0 mm
  5. - 2.5 +- 1.0 mm

Glazing

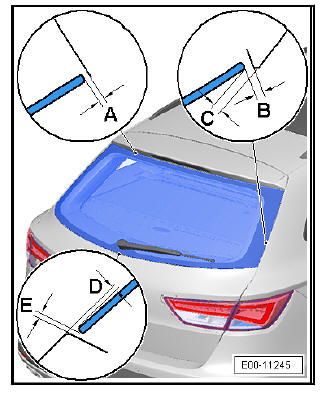

Rear window dimensions of Leon ST

  1. - 2.5 +- 1.0 mm
  2. - 3.5 +- 0.5 mm
  3. - 4.7 +- 1.0 mm
  4. - 2.1 +- 1.0 mm
  5. - 2.5 +- 1.0 mm

Glazing

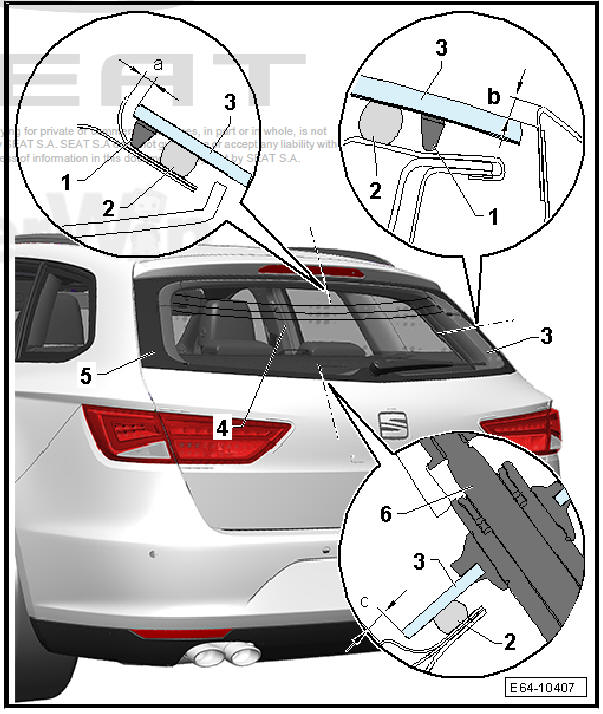

Exploded view - rear window (ST model)

Glazing

  1. - Spacer cap
    • Distributed in the scope of the window
  2. - PUR adhesive sealant
    • Bead cross section:
      • Width = 7 mm
      • Height = 11 mm (including base sealant and the rest of the material that may be on the glass)
Caution

Position a new window of the adhesive material (PUR) at the intended marking
  1. - Rear window
  2. - Thread
    • Made of electrically conductive material
    • For the heating system of the rear window
  3. - Ceramic layer
Caution

Do not damage when dealing with the window
  1. - Rear windscreen washer motor

Cota a - 2.5 mm
Cota b - 3
Cota c - 2.5 mm
