Seat Leon >> Exploded view of bumper cover

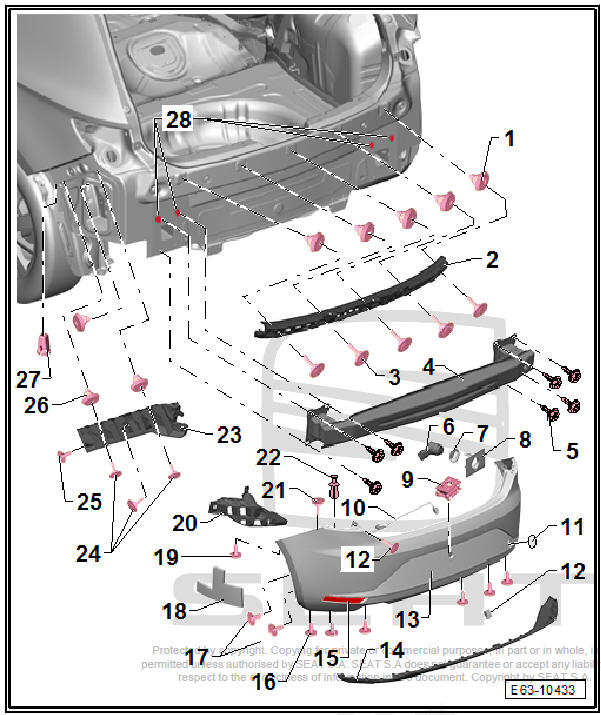

Rear bumper trim, three and five-door models: exploded view

Bumpers

  1. - Tight spreader block
    • 5 off
DANGER!

Risk of ingress of exhaust fumes in the passenger compartment

  • Take a close look at the tight spreader block and replace it if is damaged.
  • The tight expanding block prevents air from entering inside the vehicle.
  1. - Moulding attachment
  2. - Bolt.
    • 5 off
    • 2.5 Nm
  3. - Rear crossbeam

Removing

  • Remove the bumper trim
  • Remove screws -5-.
  • Remove the rear cross member.

fitting

Fit in reverse order from removal, remembering the following:

  • Ensure that cavity seal -28- is in place.
  1. - Bolt.
    • 3 + 4 each
    • 20 Nm
  2. - Sensor for rear steering parking aid
  3. - Sensor seal for the rear steering parking aid
    • 4 off
  4. - Sensor holder for the rear steering parking aid
    • 4 off
  5. - Quick locking nut
  6. - Rear view camera
  7. - Trailer hitch cover
  8. - Holder for rear view camera
  9. - Bumper trim
    • Material: PP/EPDM
  10. - Lower spoiler (rear bumper):

Removing

  • Remove the bumper trim.
  • Clip the spoiler out of the bumper trim.

fitting

Installation is done in reverse order of removal operations.

  1. - Reflector
    • Left and right.
    • Remove using the lever - U30800-
  2. - Bolt.
    • 3 + 3 each
    • 2.5 Nm
  3. - Bolt.
    • 2 + 2 each
    • 2 Nm
  4. - Soundproofing sump
    • 1 + 1 each
  5. - Bolt.
    • 1 + 1 each
    • 1.7 Nm
  6. - Support plate
    • For bumper
    • Fit into the guide profile -5- and into the securing strip -2-.
  7. - Bolt.
    • 1 + 1 each
    • 2.5 Nm
  8. - Clip
    • With plastic screws
    • Unscrew the screw to remove it
  9. - Guide profile
    • Left-side

Removing

  • Remove the bumper trim.
  • Remove screws -24-.
  • Remove the guide profile.
  • Proceed in exactly the same manner to remove the guide profile on the other side.

fitting

Installation is done in reverse order of removal operations.

  1. - Bolt.
    • 3 + 3 each
    • 2.5 Nm
  2. - Bolt.
    • 1 + 1
    • 2 Nm
  3. - Tight spreader block
    • 3 + 3 each
DANGER!

Risk of ingress of exhaust fumes in the passenger compartment

  • Take a close look at the tight spreader block and replace it if is damaged.
  • The tight expanding block prevents air from entering inside the vehicle.
  1. - Spreader block
    • 1 + 1 each
  2. - Cavity wax - AKR.308.SP5-

Note To prevent water penetration

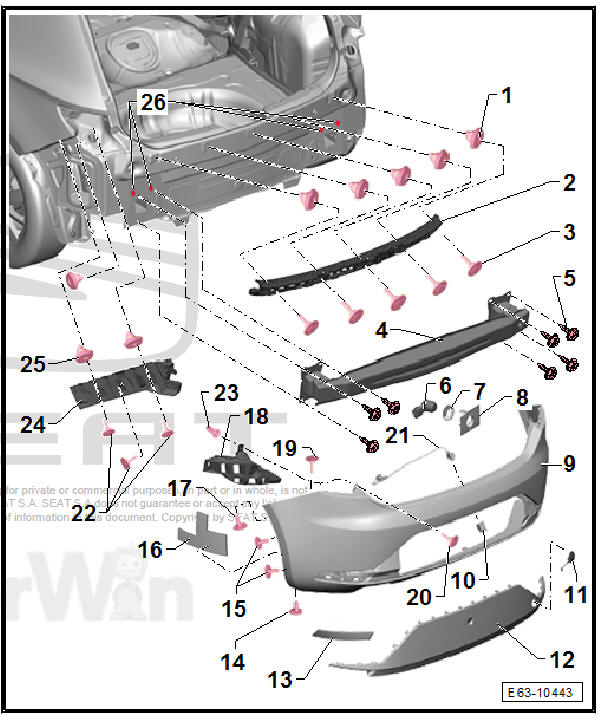

Rear bumper cover, version FR, 3 and 5 door: assembly overview

Bumpers

  1. - Tight spreader block
    • 5 off
DANGER!

Risk of ingress of exhaust fumes in the passenger compartment

  • Take a close look at the tight spreader block and replace it if is damaged.
  • The tight expanding block prevents air from entering inside the vehicle.
  1. - Moulding attachment
  2. - Bolt.
    • 5 off
    • 2.5 Nm
  3. - Rear crossbeam

Removing

  • Remove the bumper trim.
  • Remove screws -5-.
  • Remove the rear cross member.

fitting

Fit in reverse order from removal, remembering the following:

  • Ensure that cavity seal -26- is in place.
  1. - Bolt.
    • 3 + 4 each
    • 20 Nm
  2. - Sensor for rear steering parking aid
  3. - Sensor seal for the rear steering parking aid
    • 4 off
  4. - Sensor holder for the rear steering parking aid
    • 4 off
  5. - Bumper trim
    • Material: PP/EPDM
  6. - Holder for rear view camera
  7. - Trailer hitch cover
  8. - Bumper cover
  9. - Reflector
    • Left and right.
    • Remove using the lever - U30800-
  10. - Bolt.
    • 7 off
    • 2.5 Nm
  11. - Bolt.
    • 2 + 2 each
    • 2.5 Nm
  12. - Soundproofing sump
    • 1 + 1 each
  13. - Bolt.
    • 1 + 1 each
    • 2.5 Nm
  14. - Support plate
    • For bumper
    • Fit into the guide profile -22- and into the securing strip -2-.
  15. - Bolt.
    • 1 + 1 each
    • 2.5 Nm
  16. - Bolt.
    • 1 + 1 each
    • 2.5 Nm
  17. - Rear view camera
  18. - Bolt.
    • 3 + 3 each
    • 2.5 Nm
  19. - Spreader block
    • 1 + 1 each
  20. - Guide profile
    • Left-side

Removing

  • Remove the bumper trim.
  • Remove screws -23-.
  • Remove the guide profile.
  • Proceed in exactly the same manner to remove the guide profile on the other side.

fitting

Installation is done in reverse order of removal operations.

  1. - Tight spreader block
    • 3 + 3 each
DANGER!

Risk of ingress of exhaust fumes in the passenger compartment

  • Take a close look at the tight spreader block and replace it if is damaged.
  • The tight expanding block prevents air from entering inside the vehicle.
  1. - Cavity wax - AKR.308.SP5-

Note To prevent water penetration

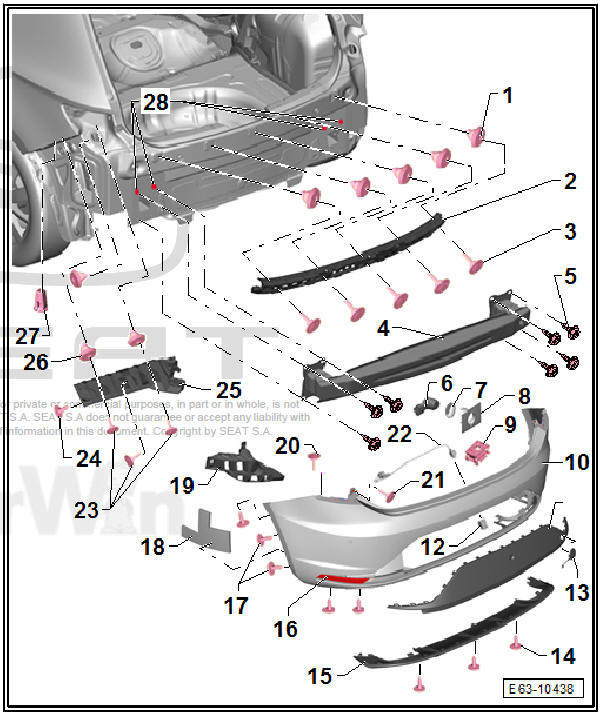

Rear bumper cover, version CUPRA, 3 and 5 door: assembly overview

Bumpers

  1. - Tight spreader block
    • 5 off
DANGER!

Risk of ingress of exhaust fumes in the passenger compartment

  • Take a close look at the tight spreader block and replace it if is damaged.
  • The tight expanding block prevents air from entering inside the vehicle.
  1. - Moulding attachment
  2. - Bolt.
    • 5 off
    • 2.5 Nm
  3. - Rear crossbeam

Removing

  • Remove the bumper trim.
  • Remove screws -5-.
  • Remove the rear cross member.

fitting

Fit in reverse order from removal, remembering the following:

  • Ensure that cavity seal -28- is in place.
  1. - Bolt.
    • 3 + 4 each
    • 20 Nm
  2. - Sensor for rear steering parking aid
    • Removing and installing
  3. - Sensor seal for the rear steering parking aid
    • 4 off
  4. - Sensor holder for the rear steering parking aid
    • 4 off
  5. - Quick locking nut
  6. - Bumper trim
    • Material: PP/EPDM
  7. - Bumper cover
  8. - Holder for rear view camera
  9. - Trailer hitch cover
  10. - Bolt.
    • 7 off
    • 2.5 Nm
  11. - Lower spoiler (rear bumper)
  12. - Reflector
    • Left and right.
    • Remove using the lever - U30800-
  13. - Bolt.
    • 3 + 3 each
    • 2.5 Nm
  14. - Soundproofing sump
    • 1 + 1 each
  15. - Support plate
  16. - Bolt.
    • 1 + 1 each
    • 2.5 Nm
  17. - Bolt.
    • 1 + 1 each
    • 2.5 Nm
  18. - Rear view camera
  19. - Bolt.
    • 3 + 3 each
    • 2.5 Nm
  20. - Spreader block
    • 1 + 1 each
  21. - Guide profile
    • Left-side

Removing

  • Remove the bumper trim.
  • Remove screws -23-.
  • Remove the guide profile.
  • Proceed in exactly the same manner to remove the guide profile on the other side.

fitting

Installation is done in reverse order of removal operations.

  1. - Tight spreader block
    • 3 + 3 each
DANGER!

Risk of ingress of exhaust fumes in the passenger compartment

  • Take a close look at the tight spreader block and replace it if is damaged.
  • The tight expanding block prevents air from entering inside the vehicle.
  1. - Spreader block
    • 1 + 1 each
  2. - Cavity wax - AKR.308.SP5-

Note To prevent water penetration.

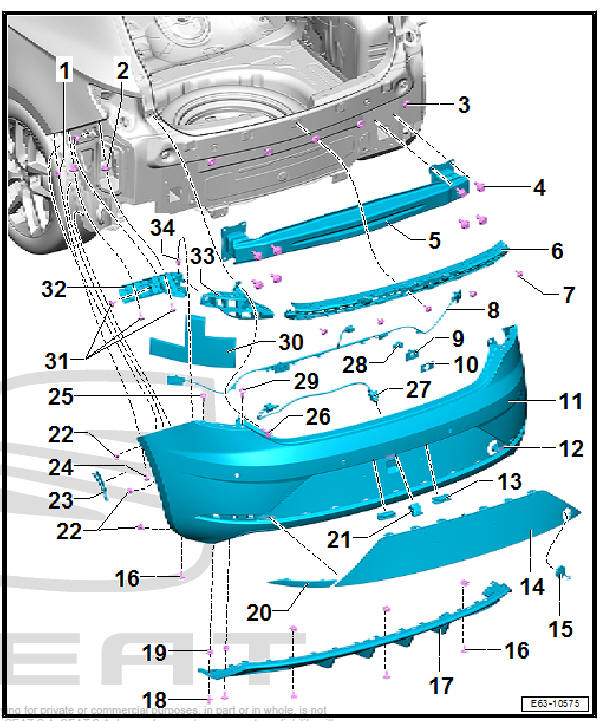

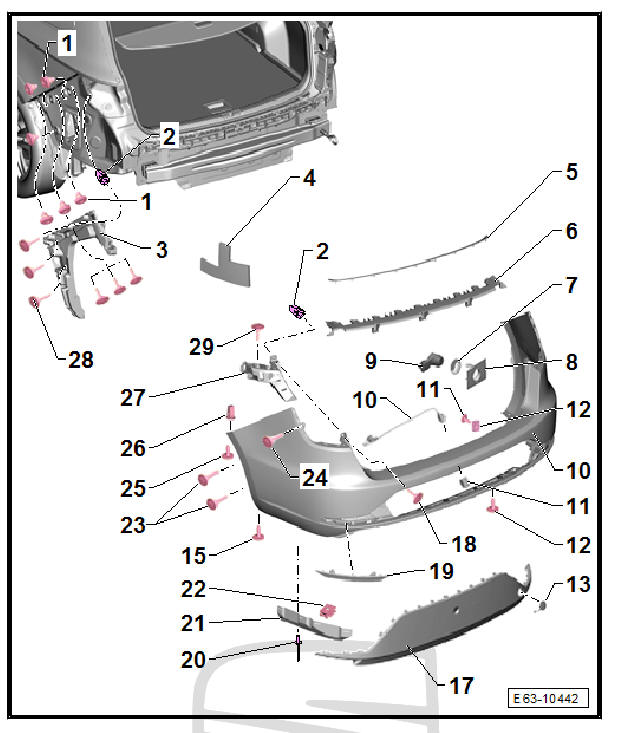

Rear bumper trim, CUPRA 2017 version - Assembly overview

Bumpers

  1. - Spreader block
    • 1 + 1 each
  2. - Tight spreader block
    • 3 + 3 each
DANGER!

Risk of ingress of exhaust fumes in the passenger compartment

  • Take a close look at the tight spreader block and replace it if is damaged.
  • The tight expanding block prevents air from entering inside the vehicle.
  1. - Tight spreader block
    • 5 off
DANGER!

Risk of ingress of exhaust fumes in the passenger compartment

  • Take a close look at the tight spreader block and replace it if is damaged.
  • The tight expanding block prevents air from entering inside the vehicle.
  1. - Bolt.
    • 4 + 4 each
    • 2.5 Nm
  2. - Rear crossbeam
  3. - Moulding attachment
  4. - Bolt.
    • 5 off
    • 2.5 Nm
  5. - Wiring harness
  6. - Sensor holder for the rear steering parking aid
    • 4 off
  7. - Sensor seal for the rear steering parking aid
    • 4 off
  8. - Bumper trim
    • Material: PP/EPDM
  9. - Clip
    • 3 off
  10. - Number plate lights X4 / X5
  11. - Bumper cover
  12. - Trailer hitch cover
  13. - Bolt.
    • 6 off
    • 2.5 Nm
  14. - Lower spoiler (rear bumper)
  15. - Expansion rivet
    • 1 + 1 each
  16. - Quick locking nut
    • 6x
  17. - Reflector
    • Left and right.
    • Remove using the lever - 3409-
  18. - Holder for rear view camera
  19. - Bolt.
    • 3 + 3 each
    • 2 Nm
  20. - Rear wheel housing liner trim
    • Connected to the inner side of the bumper trim with adhesive
  21. - Bolt
    • 1 + 1 each
    • 1.7 Nm
  22. - Bolt.
    • 1 + 1 each
    • 2.5 Nm
  23. - Bolt.
    • 1 + 1 each
    • 2.5 Nm
  24. - Rear view camera
  25. - Sensor for rear steering parking aid
    • Removing and installing
  26. - Clip
    • 1 + 1 each
  27. - Soundproofing sump
    • 2 off
  28. - Bolt.
    • 3 + 3 each
    • 2.5 Nm
  29. - Guide profile
  30. - Support plate
  31. - Fixing block
    • 1 + 1 each

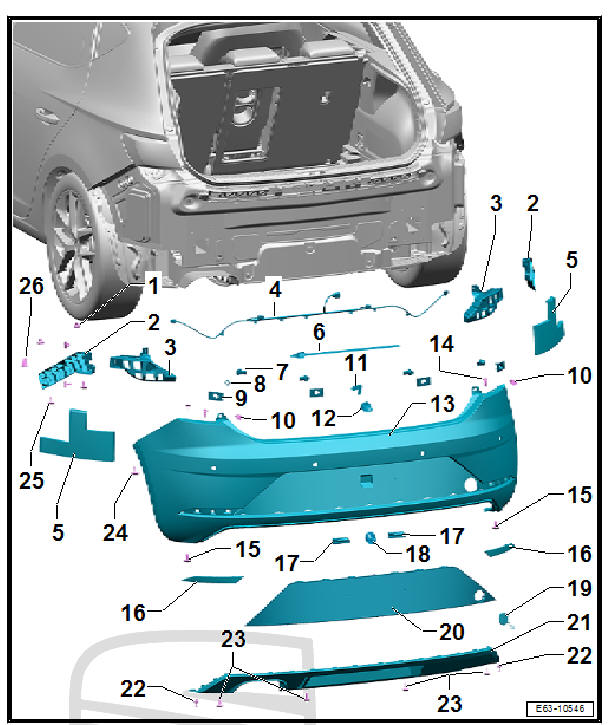

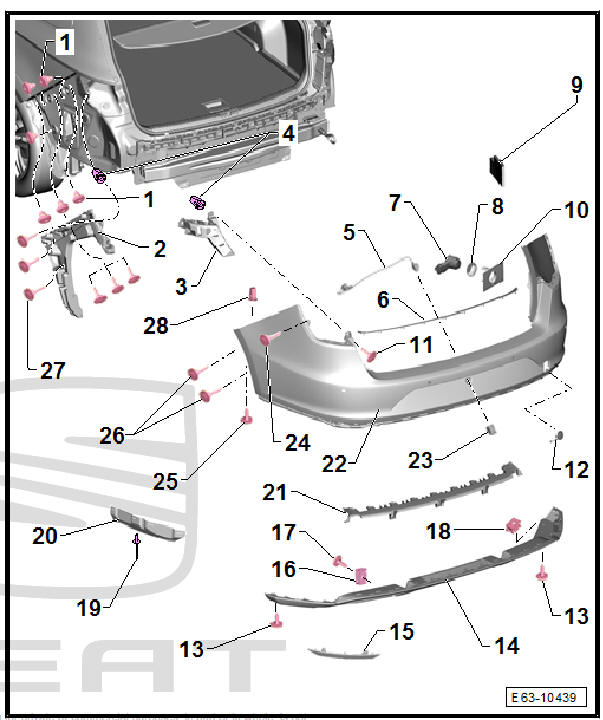

Rear bumper cover, version Leon 2017 - assembly overview

Bumpers

  1. - Bolt.
    • 3 + 3 each
    • 2.5 Nm
  2. - Wiring harness
  3. - Support plate
  4. - Soundproofing sump
    • 2 off
  5. - Bolt.
    • 1 + 1 each
    • 2.5 Nm
  6. - Sensor seal for the rear steering parking aid
    • 4 off
  7. - Sensor holder for the rear steering parking aid
    • 4 off
  8. - Sensor for rear steering parking aid
    • Removing and installing
  9. - Rear view camera
  10. - Sealing cap
  11. - Bolt.
    • 1 + 1 each
    • 2.5 Nm
  12. - Trailer hitch cover
  13. - Number plate lights X4 / X5
  14. - Holder for rear view camera
  15. - Bumper trim
    • Material: PP/EPDM
  16. - Reflector
    • Left and right.
    • Remove using the lever - U30800-
  17. - Clip
    • 2 off
  18. - Bolt.
    • 4 off
    • 2.5 Nm
  19. - Lower spoiler (rear bumper)
  20. - Bolt.
    • 1 + 1 each
    • 1.7 Nm
  21. - Bolt.
    • 1 + 1 each
    • 2.5 Nm
  22. - Clip
    • With plastic screws
    • Unscrew the screw to remove it
  23. - Bolt.
    • 3 + 3 each
    • 2.5 Nm
  24. - Wiring harness
  25. - Guide profile
  26. - Tight spreader block
    • 3 + 3 each
DANGER!

Risk of ingress of exhaust fumes in the passenger compartment

  • Take a close look at the tight spreader block and replace it if is damaged.
  • The tight expanding block prevents air from entering inside the vehicle.
  1. - Spreader block
    • 1 + 1 each

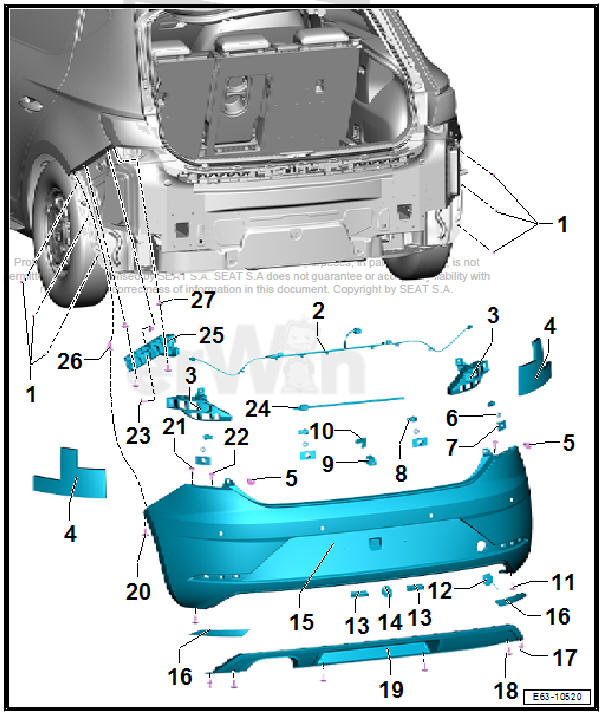

Rear bumper cover, version FR Leon 2017 - assembly overview

Bumpers

  1. - Tight spreader block
    • 3 + 3 each
DANGER!

Risk of ingress of exhaust fumes in the passenger compartment

  • Take a close look at the tight spreader block and replace it if is damaged.
  • The tight expanding block prevents air from entering inside the vehicle.
  1. - Guide profile
  2. - Support plate
  3. - Wiring harness
  4. - Soundproofing sump
    • 2 off
  5. - Wiring harness
  6. - Sensor for rear steering parking aid
    • Removing and installing
  7. - Sensor seal for the rear steering parking aid
    • 4 off
  8. - Sensor holder for the rear steering parking aid
    • 4 off
  9. - Bolt.
    • 1 + 1 each
    • 2.5 Nm
  10. - Sealing cap
  11. - Rear view camera
  12. - Bumper trim
    • Material: PP/EPDM
  13. - Bolt
    • 1 + 1 each
    • 2.5 Nm
  14. - Bolt.
    • 1 + 1 each
    • 2.5 Nm
  15. - Reflector
    • Left and right.
    • Remove using the lever - U30800-
  16. - Number plate lights X4 / X5
  17. - Holder for rear view camera
  18. - Trailer hitch cover
  19. - Bumper cover
  20. - Lower spoiler (rear bumper)
  21. - Clip
    • 2 off
  22. - Bolt.
    • 4 off
    • 2.5 Nm
  23. - Bolt.
    • 1 + 1 each
    • 1.7 Nm
  24. - Bolt.
    • 3 + 3 each
    • 2.5 Nm
  25. - Spreader block
    • 1 + 1 each

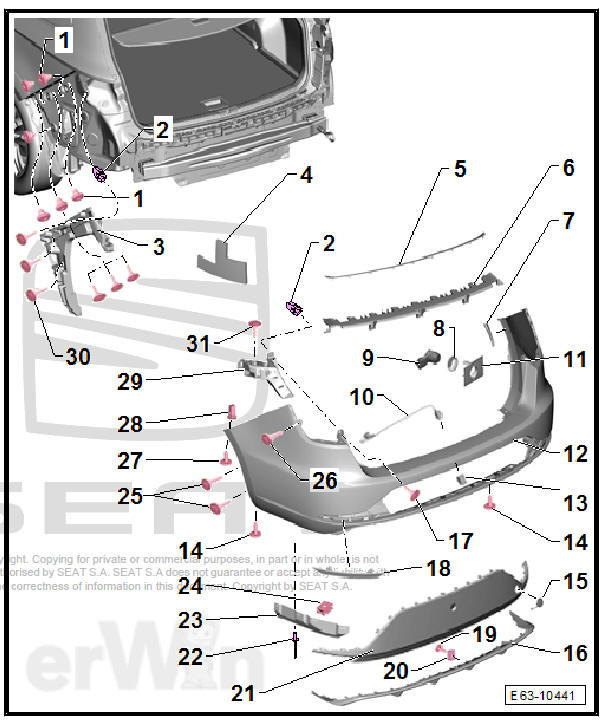

Model ST rear bumper trim: exploded view

Bumpers

  1. - Tight spreader block
    • 6 + 6 each
DANGER!

Risk of ingress of exhaust fumes in the passenger compartment

  • Take a close look at the tight spreader block and replace it if is damaged.
  • The tight expanding block prevents air from entering inside the vehicle.
  1. - Guide profile
    • Left-side

Removing

  • Remove the bumper trim.
  • Remove screws -27-.
  • Remove the guide profile.
  • Proceed in exactly the same manner to remove the guide profile on the other side.

fitting

Installation is done in reverse order of removal operations.

  1. - Support plate
  2. - Spreader block
  3. - Rear view camera
  4. - Moulding
  5. - Sensor for rear steering parking aid
  6. - Sensor seal for the rear steering parking aid
    • 4 off
  7. - Soundproofing sump
    • 1 + 1 each
  8. - Sensor holder for the rear steering parking aid
    • 4 off
  9. - Bolt.
    • 1 + 1 each
    • 2.5 Nm
  10. - Trailer hitch cover
  11. - Bolt.
    • 3 + 3 each
    • 2 Nm
  12. - Lower spoiler (rear bumper):
  13. - Reflector
    • 1 + 1
    • Remove using the lever - 3409-
  14. - Quick locking nut
  15. - Bolt.
    • 1 + 1 each
    • 2.5 Nm
  16. - Quick locking nut
  17. - Rivet
  18. - Heat shield
  19. - Rear bumper cover reinforcement
  20. - Bumper trim
    • Material: PP/EPDM
  21. - Holder for rear view camera
  22. - Bolt.
    • 1 + 1 each
    • 2.5 Nm
  23. - Bolt.
    • 1 + 1 each
    • 1.7 Nm
  24. - Bolt.
    • 2 + 2 each
    • 2 Nm
  25. - Bolt.
    • 6 + 6 each
    • 2.5 Nm
  26. - Spreader block
    • 1 + 1 each

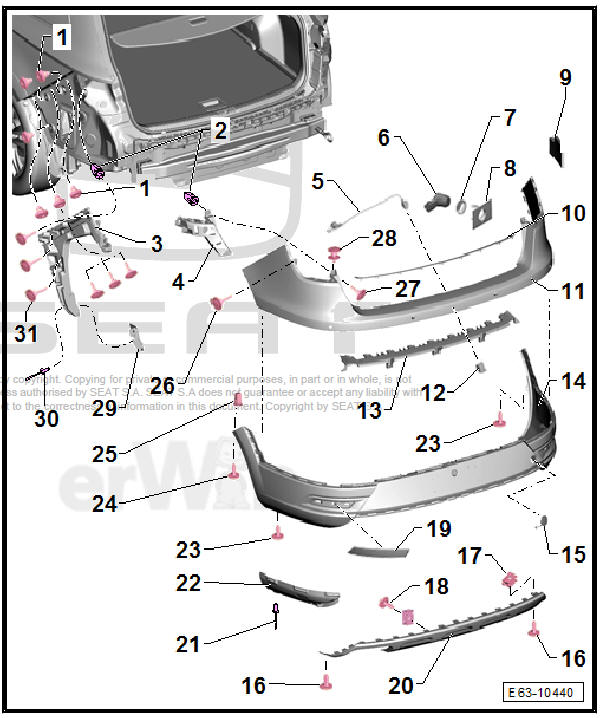

Rear bumper trim, X-PERIENCE model: Exploded view

Bumpers

  1. - Tight spreader block
    • 6 + 6 each
DANGER!

Risk of ingress of exhaust fumes in the passenger compartment

  • Take a close look at the tight spreader block and replace it if is damaged.
  • The tight expanding block prevents air from entering inside the vehicle.
  1. - Spreader block
  2. - Guide profile
    • Left-side

Removing

  • Remove the bumper trim
  • Remove screws -31-.
  • Remove the guide profile.
  • Proceed in exactly the same manner to remove the guide profile on the other side.

fitting

Installation is done in reverse order of removal operations.

  1. - Support plate
  2. - Rear view camera
  3. - Sensor for rear steering parking aid
  4. - Sensor seal for the rear steering parking aid
    • 4 off
  5. - Sensor holder for the rear steering parking aid
    • 4 off
  6. - Soundproofing sump
    • 1 + 1 each
  7. - Moulding
  8. - Top bumper trim
    • Material: PP/EPDM
  9. - Holder for rear view camera
  10. - Rear bumper cover reinforcement
  11. - Lower bumper trim
    • Material: PP/EPDM
  12. - Trailer hitch cover
  13. - Bolt.
    • 3 + 3 each
    • 2 Nm
  14. - Quick locking nut
  15. - Bolt.
    • 1 + 1 each
    • 2.5 Nm
  16. - Reflector
    • 1 + 1
    • Remove using the lever - 3409-
  17. - Lower spoiler (rear bumper)
  18. - Rivet
  19. - Heat shield
  20. - Bolt.
    • 3 + 3 each
    • 2 Nm
  21. - Bolt.
    • 1 + 1 each
    • 1.7 Nm
  22. - Spreader block
    • 1 + 1 each
  23. - Bolt.
    • 1 + 1 each
    • 2.5 Nm
  24. - Bolt.
    • 1 + 1 each
    • 2.5 Nm
  25. - Bolt.
    • 1 + 1 each
    • 2.5 Nm
  26. - Heat shield
  27. - Rivet
  28. - Bolt.
    • 6 + 6 each
    • 2.5 Nm

Rear bumper trim, ST CUPRA model - exploded view

Bumpers

  1. - Tight spreader block
    • 6 + 6 each
DANGER!

Risk of ingress of exhaust fumes in the passenger compartment

  • Take a close look at the tight spreader block and replace it if is damaged.
  • The tight expanding block prevents air from entering inside the vehicle.
  1. - Spreader block
  2. - Guide profile
    • Left-side

Removing

  • Remove the bumper trim.
  • Remove screws -30-.
  • Remove the guide profile.
  • Proceed in exactly the same manner to remove the guide profile on the other side.

fitting

Installation is done in reverse order of removal operations.

  1. - Soundproofing sump
    • 1 + 1 each
  2. - Moulding
  3. - Rear bumper cover reinforcement
  4. - Wing extension
  5. - Sensor seal for the rear steering parking aid
    • 4 off
  6. - Sensor for rear steering parking aid
  7. - Rear view camera
  8. - Sensor holder for the rear steering parking aid
    • 4 off
  9. - Bumper trim
    • Material: PP/EPDM
  10. - Holder for rear view camera
  11. - Bolt.
    • 3 + 3 each
    • 2 Nm
  12. - Trailer hitch cover
  13. - Lower spoiler (rear bumper):
    • Removing and fitting
  14. - Bolt.
    • 1 + 1 each
    • 2.5 Nm
  15. - Reflector
    • Left and right.
    • Remove using the lever - 3409-
  16. - Bolt.
    • 1 + 1 each
    • 2.5 Nm
  17. - Quick locking nut
  18. - Bumper cover
  19. - Rivet
  20. - Heat shield
  21. - Quick locking nut
  22. - Bolt.
    • 2 + 2 each
    • 2 Nm
  23. - Bolt.
    • 1 + 1 each
    • 2.5 Nm
  24. - Bolt.
    • 1 + 1 each
    • 1.7 Nm
  25. - Spreader block
    • 1 + 1 each
  26. - Support plate
  27. - Bolt.
    • 6 + 6 each
    • 2.5 Nm
  28. - Bolt.
    • 1 + 1 each
    • 2.5 Nm

Rear bumper trim, ST FR model - exploded view

Bumpers

  1. - Tight spreader block
    • 6 + 6 each
DANGER!

Risk of ingress of exhaust fumes in the passenger compartment

  • Take a close look at the tight spreader block and replace it if is damaged.
  • The tight expanding block prevents air from entering inside the vehicle.
  1. - Spreader block
  2. - Guide profile
    • Left-side

Removing

  • Remove the bumper trim.
  • Remove screws -28-.
  • Remove the guide profile.
  • Proceed in exactly the same manner to remove the guide profile on the other side.

fitting

Installation is done in reverse order of removal operations.

  1. - Soundproofing sump
    • 1 + 1 each
  2. - Moulding
  3. - Rear bumper cover reinforcement
  4. - Sensor seal for the rear steering parking aid
    • 4 off
  5. - Sensor holder for the rear steering parking aid
    • 4 off
  6. - Sensor for rear steering parking aid
  7. - Rear view camera
  8. - Bolt.
    • 1 + 1 each
    • 2.5 Nm
  9. - Quick locking nut
  10. - Bumper trim
    • Material: PP/EPDM
  11. - Holder for rear view camera
  12. - Bolt.
    • 3 + 3 each
    • 2 Nm
  13. - Trailer hitch cover
  14. - Bumper cover
  15. - Bolt.
    • 1 + 1 each
    • 2.5 Nm
  16. - Reflector
    • 1 + 1
    • Remove using the lever - 3409-
  17. - Rivet
  18. - Heat shield
  19. - Quick locking nut
  20. - Bolt.
    • 2 + 2 each
    • 2 Nm
  21. - Bolt.
    • 1 + 1 each
    • 2.5 Nm
  22. - Bolt.
    • 1 + 1 each
    • 1.7 Nm
  23. - Spreader block
    • 1 + 1 each
  24. - Support plate
  25. - Bolt.
    • 6 + 6 each
    • 2.5 Nm
  26. - Bolt.
    • 1 + 1 each
    • 2.5 Nm
    Exploded view - impact bar
    Cross brace of the rear bumper cover, 3 and 5 door: assembly overview - Cavity wax - AKR.308.SP5- Note To prevent water penetration - Tight spreader block 5 off DANGER ...

    See also:

    Switching off the engine
    – Stopping the engine. – Turn the ignition key to position  fig. 115 0. After the engine is switched off the radiator fan may run on for up to 10 minutes, even if the ignition is switched ...
