Seat Leon >> Removing and installing impact bar
Special tools and workshop equipment required

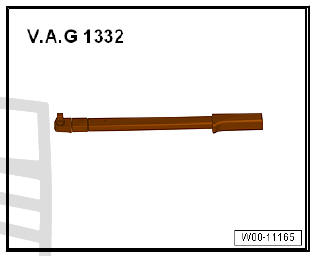

- Torque wrench - VAG 1332-

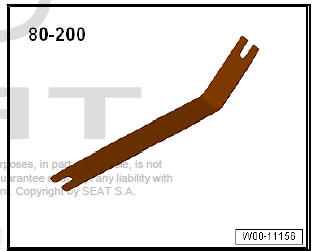

- Release lever - 80 200-
Removing
- Remove bumper cover (front).
- Remove the main headlight unit with the lower bracket.
Continuation only for vehicles with ventilation control
- Remove ventilation control
All vehicles (continued):

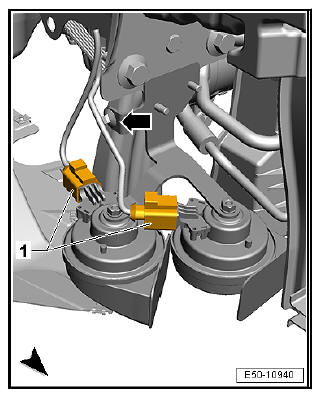

Note Depending on the vehicle version, one of the signal horns may be affixed to the longitudinal beam opposite.
- Unclip the connectors of the horn -1-.
- Free the clips -arrow- with the lever - 80 200- .

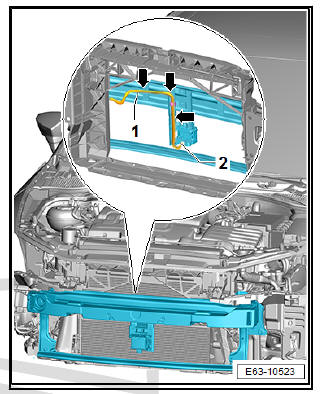

Continuation only for vehicles with adaptive cruise control unit - J428-
- Detach connector -2-.
- Loosen cross member -1- from the fastenings -arrows-.
All vehicles (continued):

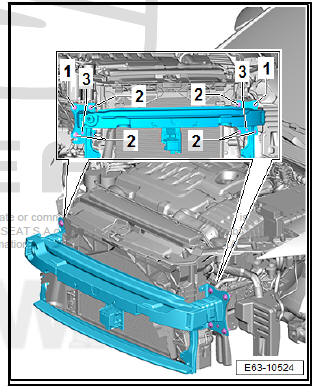

- Loosen the bolts -1-, but do not screw out.
- Remove screws -2-.
Continued only for vehicles with an underbody guard
- Remove screws -3-.
All vehicles (continued):

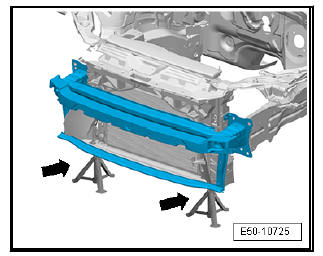

- Place two support blocks under the lock carrier -arrows-.

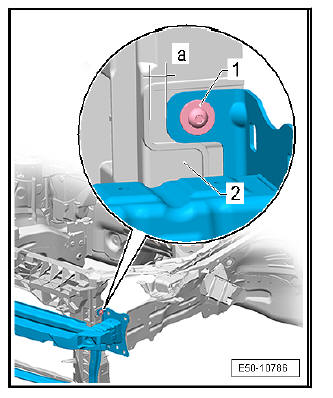

- With an indelible pen, mark the position (dimension -a-) of the cross-member relative to the lock member.

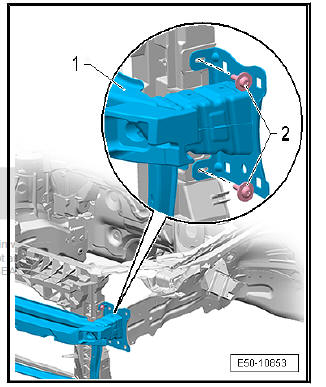

- Remove screws -2-.
- Clip out the impact bar -1- from the mount in the lock carrier.
- Remove the remaining screws and then remove the impact bar -1-.
Installation
Fit in reverse order from removal, remembering the following:

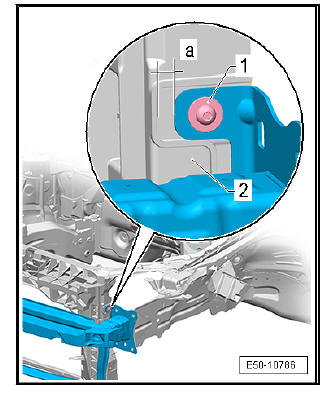

- Move both sides of the impact bar until it is aligned with the pen marks (dimension -a-) on the lock member -2-. Tighten the screws on both sides -1-.
- Use the tightening torque of the screws.
Continuation only for vehicles with adaptive cruise control unit - J428-
- Calibrate adaptive cruise control.
