SEAT Leon Service and Repair Manual / General body repairs, exterior / Bumpers / Front bumper / Impact bar - exploded view

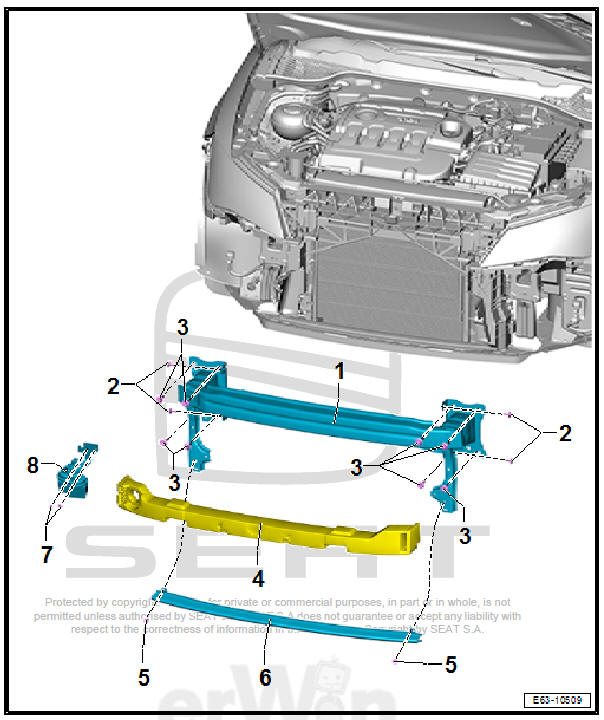

Impact bar - exploded view
- - Impact bar
- - Bolt.
- 2 + 2 each
- 8 Nm
- - Bolt.
- 4 + 4 each
- 55 Nm
- - Shock absorber
- - Bolt.
- 2 off
- 8 Nm
- - Protective support for pedestrians
- - Nut
- 2 off
- 13 Nm
- - Alarm horn
- Removal and installation

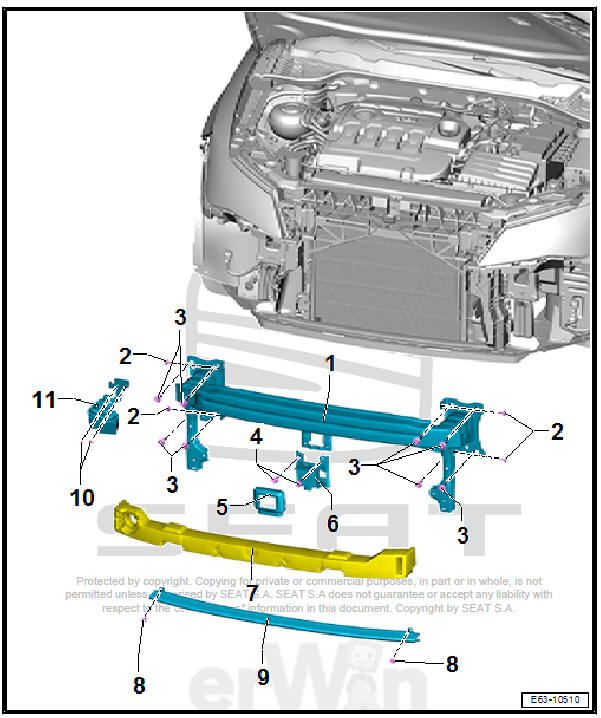

Impact bar, version with control unit for adaptive cruise control (ACC) - J428- - assembly overview
- - Impact bar
- - Bolt.
- 2 + 2 each
- 8 Nm
- - Bolt.
- 4 + 4 each
- 55 Nm
- - Bolt.
- 2 off
- 8 Nm
- - Cover
- Removal and installation
- - Control unit for adaptive
cruise control (ACC) - J428-
- Removal and installation
- Calibrate
- - Shock absorber
- - Bolt.
- 2 off
- 8 Nm
- - Protective support for pedestrians
- - Nut
- 2 off
- 13 Nm
- - Alarm horn
- Removal and installation
Exploded view of bumper cover
Front bumper lining - Assembly overview
- Front park assist steering
senders
4 off
- Seal for the sensor of the
front steering parking aid
4 off
- Sensor holder for the ...
Removing and installing bumper cover
Removing and installing bumper cover
Special tools and workshop equipment required
Torque wrench 2-10 Nm - VAG 1783-
Liquids capture device - VAS 6208-
Sealing plug set - VAS 6122 ...
