Seat Leon >> Removing and installing window regulator motor

Special tools and workshop equipment required

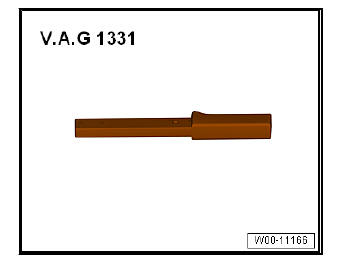

  • Torque wrench - V.A.G 1331-

Rear doors, door components

  • Removing
  • Installation

Removing

  • Remove interior trim of back door: Front door trim: removing and installation; back door trim: removing and installation.
  • Secure door window against sliding down with adhesive tape.

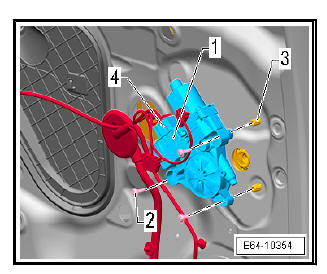

  • Clip out and remove the plug connector from the shaft -4-.
  • Remove screws -2-.
  • Remove the window lifter motor -1- from the mount -3-.

fitting

Fit in reverse order from removal, remembering the following:

  • Insert the window lifter motor -1- into the supports -3-. Move door window up and down slightly so that the splines between motor and cable drum engage more easily.
  • Use the tightening torque of the screws.
