Seat Leon >> Rear doors, door components

Rear doors, door components: Main component

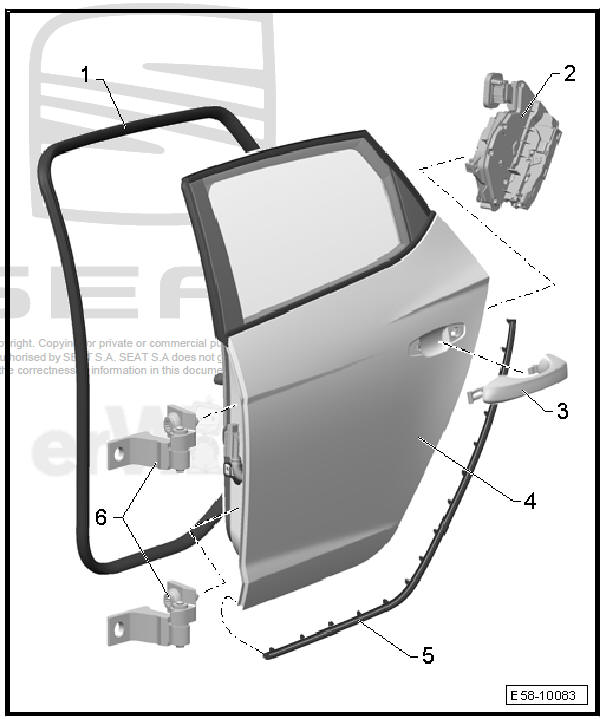

Rear doors, door components

  1. - Back door seal
  2. - Rear door lock
  3. - Outside handle (back door)
  4. - Rear door
  5. - Gasket for noise damping
    • It is attached to the door with 14 retaining clips
  6. - Hinge
