Seat Leon >> Removing and installing bulkhead

Special tools and workshop equipment required

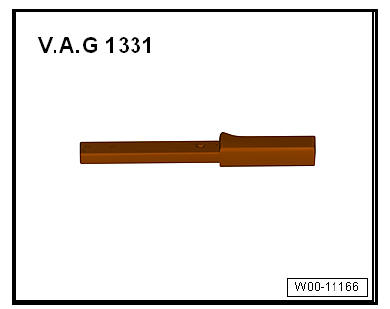

  • Torque wrench - V.A.G 1331-

Body - front

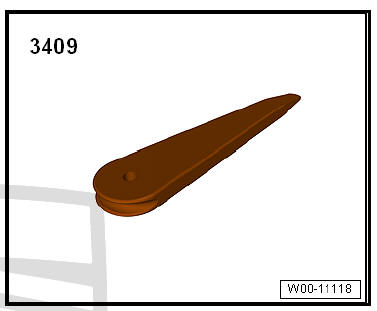

  • Release lever - 3409-

Body - front

Removing

  • Lift the front bonnet. Use the rod to keep it open.
  • Remove the grille below the windscreen.

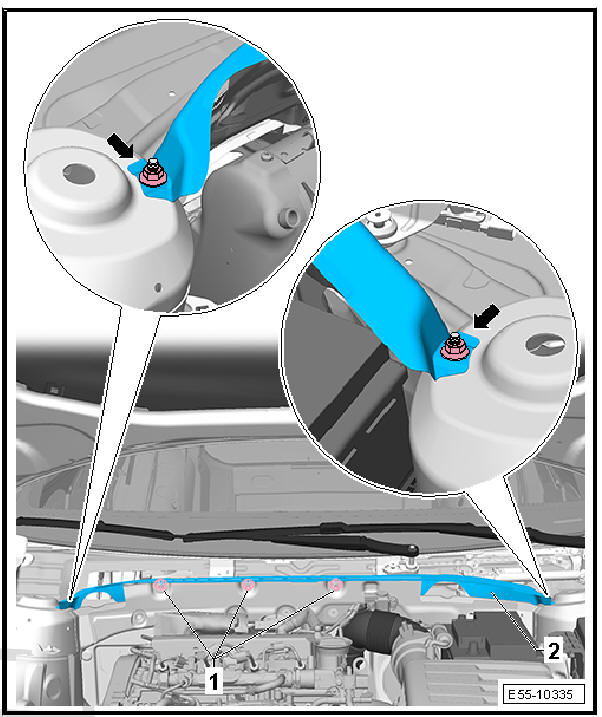

  • Remove the fixing rings -1- of the noise insulation of the plenum chamber cover.

Body - front

  • Remove noise insulation of the plenum chamber cover.
  • Remove the nuts -arrows- on both sides.
  • To remove the plenum chamber cover, pull upwards in order to release it from the fixing tabs on the body.

fitting

Fit in reverse order from removal, remembering the following:

Note

  • In case the sealing ring -2- is damage, replace it.
  • Use the washers -7- for E-PERIENCE models.

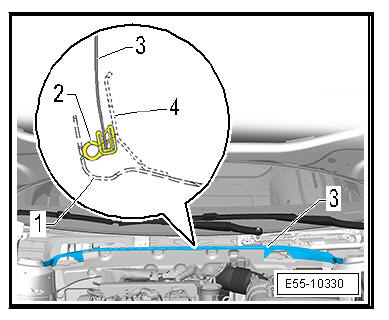

- Engage the plenum chamber cover -3- in the retaining tabs -4- of the plenum chamber -1-.

Body - front

    Exploded view - plenum chamber partition panel
    - Separator Left and right hand side Secure the retaining clip of the body Note If one of the clips are damaged, the filling piece must be replaced with a new one. - Reta ...

    Removing and installing plenum chamber cover
    Special tools and workshop equipment required Release lever - 3409- Release tool - T10236- Removing Remove windscreen wiper arm. Lift the front bonnet. Use the rod to keep it op ...
