Seat Leon >> Exploded view - wing

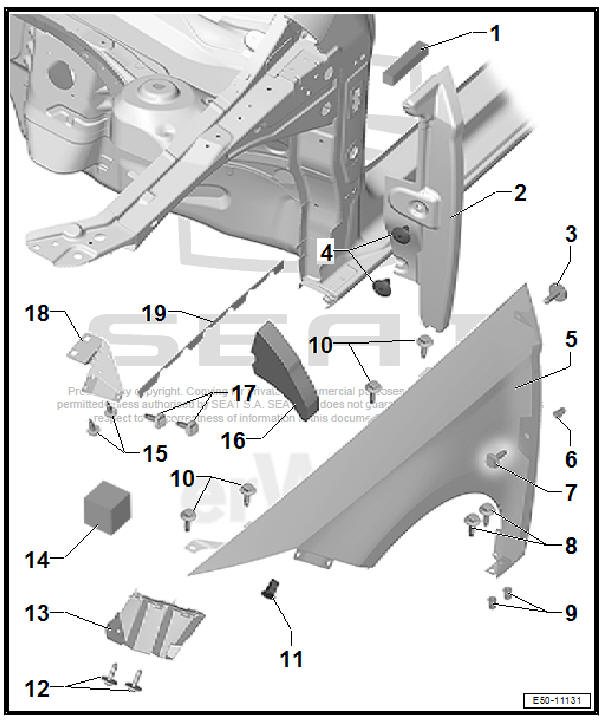

Body - front

  1. - Separator
  2. - Spacer
  3. - Bolt.
    • 1 + 1 each
    • 5+- 1 Nm
  4. - Clips
    • 2 + 2 each
  5. - Front wing
  6. - Spreader block
    • 1 + 1 each
  7. - Bolt.
    • 1 + 1 each
    • 6+- 1 Nm
  8. - Bolt.
    • 2 + 2 each
    • 6+- 1 Nm
  9. - Spreader block
    • 2 + 2 each
  10. - Bolt.
    • 4 + 4 each
    • 6+- 1 Nm
  11. - Spreader block
    • 3 + 3 each
  12. - Bolt.
    • 2 + 2 each
    • 2 Nm
  13. - Guide profile
  14. - Insulating foam
  15. - Bolt.
    • 2 + 2 each
    • 6+- 1 Nm
  16. - Insulating foam
    • Glued to the wing
  17. - Bolt.
    • 2 + 2 each
    • 6+- 1 Nm
  18. - Reinforcement for the front wing
  19. - Wear protection
    • Only for CUPRA version
    Removing and installing wing panel
    Special tools and workshop equipment required Torque wrench - V.A.G 1331- Release lever - 3409- Removing CautionThe following does not have to be removed when removing the ...
