Special tools and workshop equipment required

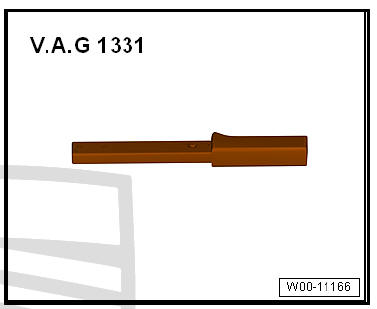

• Torque wrench - V.A.G 1331-

• Remove lock carrier

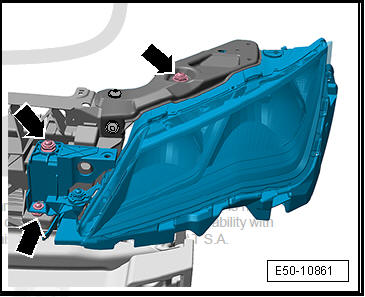

• Unscrew the bolts -arrow- with their adjusting sleeves. Subsequently remove the main headlights together with their lower brackets.

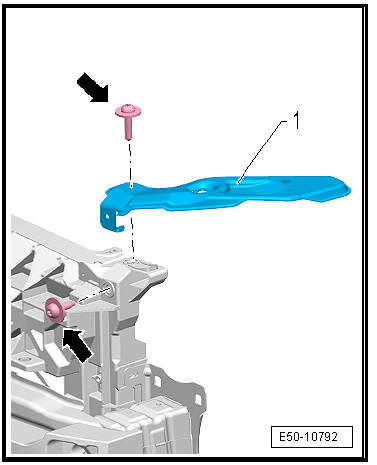

• Remove the lower holder -1-.

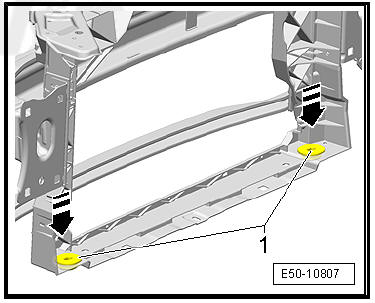

• Loosen bolts -arrows- on strut between the lock carrier -1-.

• Remove screws -2-.

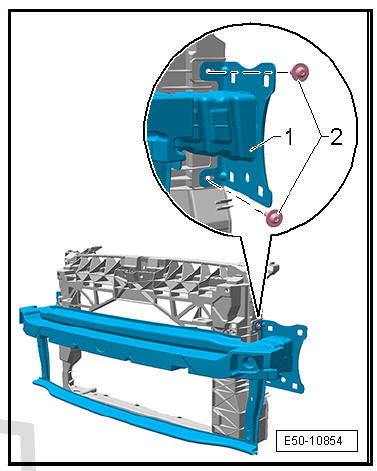

• Clip out the impact bar -1- from the mount in the lock carrier.

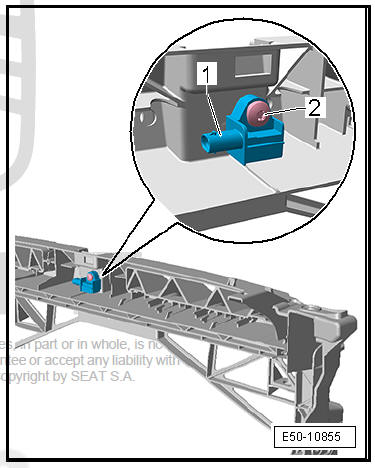

• Unscrew the screws -2- and remove the cross sensor member -1-.

fitting

Fit in reverse order from removal, remembering the following:

• Check the spacings.
• Perform basic setting of headlights, if installed.

Continuation only for vehicles with adaptive cruise control unit - J428-

• Calibrate adaptive cruise control.
