Seat Leon >> Sunroof light

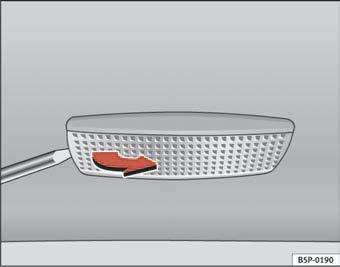

Fig. 178 Removing

Fig. 178 Removing sunroof light

Fig. 179 Removing

Fig. 179 Removing sunroof light

– Carefully remove the lamp, using the flat side of the screwdriver, as shown in the figure  fig. 179.
– Remove the lamp, moving it in the direction of the arrow and outwards  fig. 179.
– Installation is done in the reverse order.

    Registration light
    Fig. 176 Registration plate light Fig. 177 Registration plate light – To remove the bulb holder, unscrew the bolts  fig. 176. – Remove the lamp, moving it in the direction of the arr ...
