Seat Leon >> Side lights

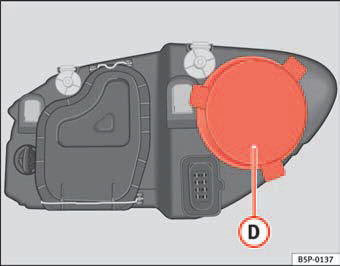

Fig. 168 Side lights

Fig. 168 Side lights

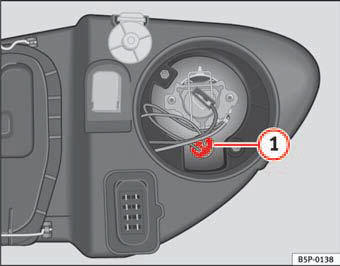

Fig. 169 Side lights

Fig. 169 Side lights

– Raise the bonnet.
– Remove the cover  fig. 168 D by pulling on this.
– Extract the lamp holder  fig. 169 1 outwards.
– Replace the bulb by pulling this out and inserting the replacement.
– Installation is done in the reverse order.
