Seat Leon >> Covering bi-xenon headlights for driving on the right

SEAT Leon Owner's Manual / Tips and Maintenance / Driving and the environment / Driving abroad / Covering bi-xenon headlights for driving on the right

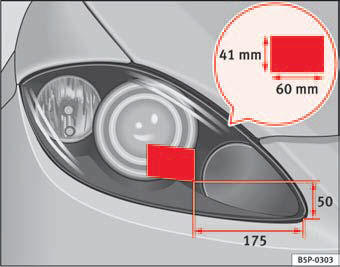

Fig. 136 Right headlight

Fig. 136 Right headlight

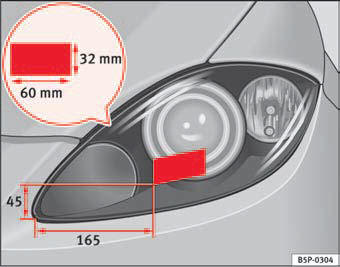

Fig. 137 Left headlight

Fig. 137 Left headlight

On the right headlight, if you are changing from driving on the left-hand side to the right-hand side.

On the left headlight, if you are changing from driving on the left-hand side to the right-hand side.

    Covering bi-xenon headlights for driving on the left
    Fig. 134 Right headlight Fig. 135 Left headlight On the right-hand side headlight, if you are changing from driving on the right-hand side to the left-hand side fig. 134. On the left-hand si ...
