Seat Leon >> Electrical sockets

Electrical equipment can be connected to any of the 12 volt sockets.

Fig. 100 Socket, centre

Fig. 100 Socket, centre console, front

Electrical accessories may be connected to the 12 volt socket in the front centre console  fig. 100 or to that of the luggage compartment*. The appliances connected to each socket must not exceed a power rating of 120 Watt.

WARNING

The electrical sockets and any appliances connected to them are also functional with the ignition switched off and the key removed. Improper use of the sockets or electrical accessories can lead to serious injuries or cause a fire. To avoid the risk of injury, never leave children unsupervised in the vehicle.

Note
• Using electrical appliances with the engine switched off will drain the battery.
• Before using any electrical accessories, see the instructions.

Auxiliary audio connection (AUX-IN)

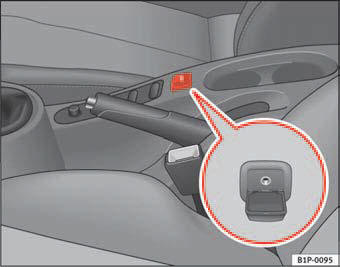

Fig. 101 Auxiliary audio

Fig. 101 Auxiliary audio connection

– Lift the AUX cover  fig. 101.
– Insert the pin fully (see the radio manual).

Apple* iPod connector®

The iPod connector® is located below the passenger seat.

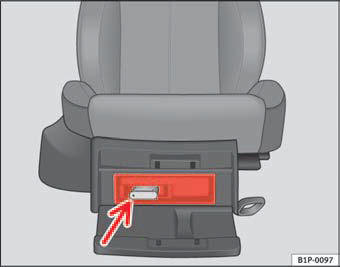

Fig. 102 iPod connection

Fig. 102 iPod connection below passenger seat

For information concerning the use of this equipment, please see the Radio handbook.

USB* Connection

There is a USB port below the passenger seat.

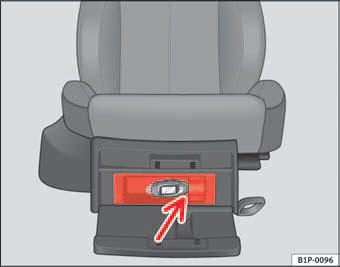

Fig. 103 USB* connection

Fig. 103 USB* connection below passenger seat

For information concerning the use of this equipment, please see the Radio handbook.
