Stowage compartment on the front passenger side

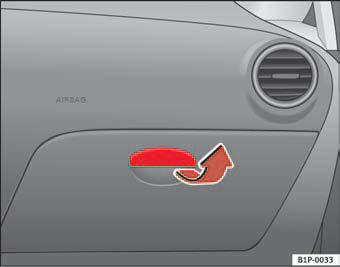

Fig. 94 Passenger side: Stowage compartment
The compartment can be opened by pulling the lever fig. 94.
WARNING
Always keep the stowage compartment cover closed while the vehicle is in motion to reduce the risk of injury during a sudden braking manoeuvre or in the event of an acciden
