Seat Leon >> Display with multi-function display (MFD)*

The multi-function display (MFD) shows you diverse journey and consumption data.

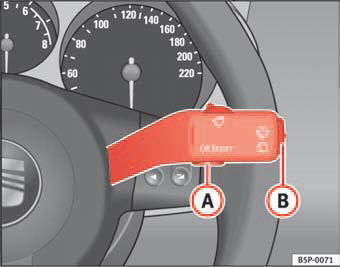

Fig. 38 Windscreen wiper

Fig. 38 Windscreen wiper and washer lever: Button A and rocker switch B

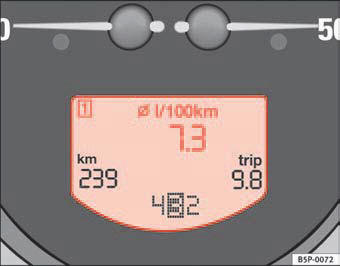

Fig. 39 Digital screen on

Fig. 39 Digital screen on the instrument panel: Average fuel consumption display

The multi-function display is equipped with two automatic memories: 1 - Trip memory and 2 - Total journey memory. The selected memory will be shown in the upper right-hand corner of the display.

Selecting memory
– With the ignition switched on, briefly press the button  fig. 38 A on the windscreen wiper lever to move between the two memories.

Resetting the memory
– Select the memory that you would like to reset.
– Press and hold button  A on the windscreen wiper lever for at least 2 seconds.

The trip memory 1 collects the travel and consumption data from the moment the ignition is switched on until it is switched off. If the journey is continued within two hours of switching off the ignition, the new values will be added to the existing trip recorder memory. The memory will automatically be deleted if the journey is interrupted for more than two hours.

The total journey memory 2 collects the journey data for any number of individual journeys (even if the ignition is switched off for longer than two hours) up to a total of 99 hours and 59 minutes travel time, 9999 miles distance travelled and 999 litres of fuel consumed. The memory will automatically be deleted if one of the named values is reached.
