Seat Leon >> The function of the airbag covers if the airbags are triggered

SEAT Leon Owner's Manual / Safety First / Airbag system / Front airbags / The function of the airbag covers if the airbags are triggered

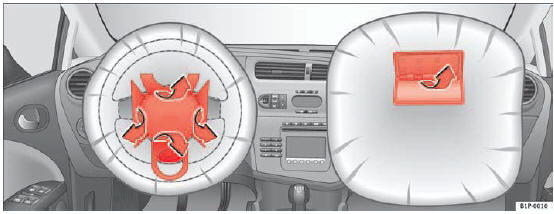

Fig. 20 Airbag covers reacting when the airbags are triggered

Fig. 20 Airbag covers reacting when the airbags are triggered

The airbag covers fold out of the steering wheel or dash panel when the driver and front passenger airbags deploy  fig. 20. The airbag covers remain connected to the steering wheel or the dash panel.

    Function of front airbags
    Inflated airbags reduce the risk of head or chest injury. Fig. 19 Inflated front airbags The airbag system is designed so that the airbags for the driver and front passenger are triggered in a s ...

    Safety notes on front airbag system
    If you use airbags correctly, they can considerably reduce the risk of injury in many kinds of accident. WARNING • It is important for the driver and front passenger to maintain a distance of ...
