Seat Leon >> Wheel assignment

6 J x 15

Note Always observe the allocation of wheels and tyres to the respective engines, which are listed in the overview table.

Bolt hole diameter: 112 mm
Number of wheel bolt holes: 5

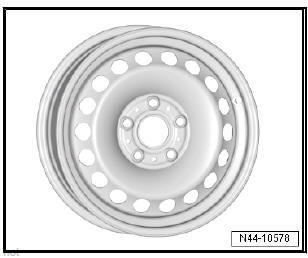

Steel rim 5Q0 601 027 and 5Q0 601 027 L

Wheel rims and tyres

Wheel rims and tyres

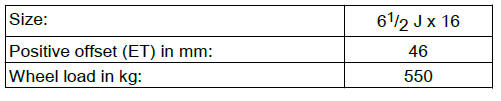

6 1/2 J x 16

Note Always observe the allocation of wheels and tyres to the respective engines, which are listed in the overview table.

Bolt hole diameter: 112 mm
Number of wheel bolt holes: 5

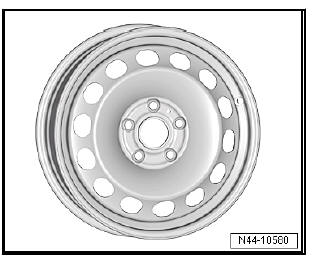

Steel rim 5Q0 601 027 AK

Wheel rims and tyres

Wheel rims and tyres

Aluminium rim 5F0 601 025 R

Wheel rims and tyres

Wheel rims and tyres

Aluminium rim 5F0 601 025

Wheel rims and tyres

Wheel rims and tyres

Aluminium rim 5F0 601 025 A

Wheel rims and tyres

Wheel rims and tyres

7 J x 17

Note Always observe the allocation of wheels and tyres to the respective engines, which are listed in the overview table.

Bolt hole diameter: 112 mm
Number of wheel bolt holes: 5

Aluminium rim 5F0 601 025 H

Wheel rims and tyres

Wheel rims and tyres

Aluminium rim 5F0 601 025 Q

Wheel rims and tyres

Wheel rims and tyres

Aluminium rim 5F0 601 025 S

Wheel rims and tyres

Wheel rims and tyres

Aluminium rim 5F0 601 025 T

Wheel rims and tyres

Wheel rims and tyres

Aluminium rim 5F0 601 025 M

Wheel rims and tyres

Wheel rims and tyres

7 1/2 J x 17

Note Always observe the allocation of wheels and tyres to the respective engines, which are listed in the overview table.

Bolt hole diameter: 112 mm
Number of wheel bolt holes: 5

Aluminium rim 5F0 601 025 B

Wheel rims and tyres

Wheel rims and tyres

Aluminium rim 5F0 601 025 G

Wheel rims and tyres

Wheel rims and tyres

7 1/2 J x 18

Note Always observe the allocation of wheels and tyres to the respective engines, which are listed in the overview table.

Bolt hole diameter: 112 mm
Number of wheel bolt holes: 5

Aluminium rim 5F0 601 025 E

Wheel rims and tyres

Wheel rims and tyres

Aluminium rim 5F0 601 025 F

Wheel rims and tyres

Wheel rims and tyres

Aluminium rim 5F0 601 025 AA

Wheel rims and tyres

Wheel rims and tyres

Aluminium rim 5F0 601 025 AB

Wheel rims and tyres

Wheel rims and tyres

Aluminium rim 5F0 601 025 D

Wheel rims and tyres

Wheel rims and tyres

Aluminium rim 5F0 601 025 J

Wheel rims and tyres

Wheel rims and tyres

Aluminium rim 5F0 601 025 N

Wheel rims and tyres

Wheel rims and tyres

8 J x 19

Note Always observe the allocation of wheels and tyres to the respective engines, which are listed in the overview table.

Bolt hole diameter: 112 mm
Number of wheel bolt holes: 5

Caution

8 J x 19 wheels can only be fitted under the following conditions:

  • The wheel may only be fitted on CUPRA vehicles which have factory-fitted 19-inch wheels and have been delivered with these wheels.
  • Retrofitting vehicles with factory fitted 18 inch wheels is not possible.

Aluminium rim 5F0 601 025 K

Wheel rims and tyres

Wheel rims and tyres

Aluminium rim 5F0 071 490 A

Wheel rims and tyres

Wheel rims and tyres

Aluminium rim 5F0 601 025 AC

Wheel rims and tyres

Wheel rims and tyres
