Seat Leon >> Removing and installing brake pedal

Note

  • It is not possible to remove the brake pedal individually.
  • Remove the pedal cluster/ mounting bracket assembly first.

Removing:

  • Removing the support stand .
  • Turn threaded fastener on pivot pin anti-clockwise in direction indicated by -arrow-.

Brakes - mechanism

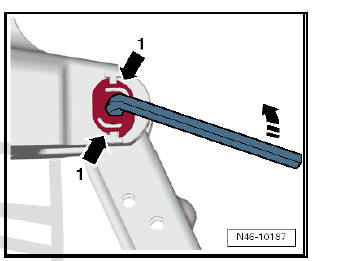

Note The retainer lugs -arrow 1- break in the process. Renew pivot pin.

  • Pull out pivot pin from right side.
  • Take brake pedal out of mounting bracket.

Installation:

Note Renew pivot pin and threaded fastener.

WARNING

Do not lubricate or grease pivot pin. Pivot pin must remain dry.

Both bearing bushes must be fitted in the brake pedal bearing so that the pedal is secure in the mounting bracket.
  • Slide pivot pin from right to left through pedal bracket and brake pedal.
  • Push the new bearing axle from the left to the right through the bearing block and brake pedal.

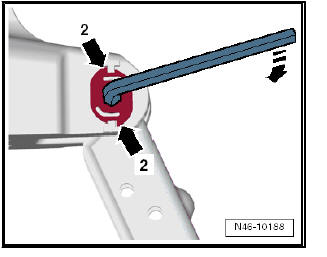

  • Turn the screw on the bearing axle clockwise -movement arrow-, until the tabs -arrow 2- located audibly in their limit position in the bearing block.
  • Installing the bearing block.

Brakes - mechanism

Caution

Make sure that the brakes work properly before the vehicle is driven on the road.
    Separating brake pedal from brake servo
    Special tools and workshop equipment required Release tool - T10159 A- or Release tool - T10159 B Removing Remove driver's side knee airbag and cover (depends on version). Work seque ...

    Removing and installing mounting bracket
    Removing and installing mounting bracket, LHD Special tools and workshop equipment required Release tool - T10159 A- or Release tool - T10159 B Removing: Remove the vent in the footwe ...
