Seat Leon >> Removing and installing speed sensors on front axle -G45- / -G47-
SEAT Leon Service and Repair Manual / Brake system / Anti-lock brake system / Sensors / Removing and installing speed sensors
on front axle -G45- / -G47-
Special tools and workshop equipment required

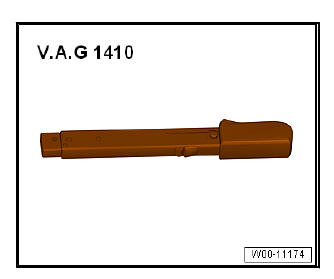

- Torque wrenches - V.A.G 1410-
- Lubricating paste - Electronic parts catalogue .
Removing
- Remove appropriate front wheel.

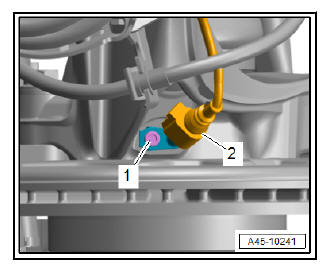

- Remove electrical connector -2- from the speed sensor.
- Unscrew bolt -1- and pull speed sensor out of wheel bearing housing.
Installing
Carry out installation in the reverse sequence, noting the following:
- Before fitting the speed sensor, the inner surface of the hole must be cleaned and lubricating paste must be applied all around it - Electronic parts catalogue .
Assembly overview - speed sensor on front axle
- Speed sensor
Front right speed sensor
- G45- / rear left speed
sensor - G46-
Before installing the
speed sensor, apply lubricating
paste all
around - Electronic
parts ca ...
Removing and installing speed sensor
on rear axle -G44- / -G46-
Removing and installing speed sensor
on rear axle -G44- / -G46- , vehicles with
front-wheel drive
Special tools and workshop equipment required
Torque wrenches - V.A.G 1410-
Lubricating ...
