Seat Leon >> Removing and installing anti-roll bar

Special tools and workshop equipment required

  • Torque wrenches - V.A.G 1331-

Rear suspension

Removing

  • Remove rear wheels.

Note The following steps are described for the left side of the vehicle.

The procedure for the right side of the vehicle is identical.

  • Remove the coil springs.

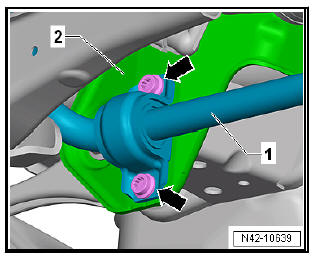

  • Remove bolts -arrows- for anti-roll bar -1-.

Rear suspension

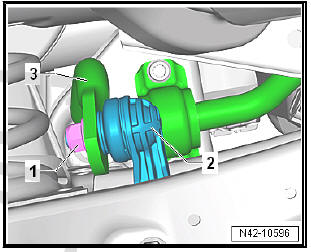

  • Unscrew nut -1- securing coupling rod -2-.
  • Pull coupling rod -2- out of anti-roll bar -3-.
  • Remove anti-roll bar -3- from subframe.

Vehicles with four wheel drive

  • Guide out anti-roll bar over exhaust system.

Rear suspension

Installing

Carry out installation in the reverse sequence, noting the following:

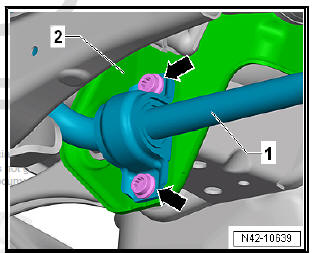

  • Tighten bolts -arrows- for anti-roll bar -1- evenly on subframe -2-.
