Seat Leon >> Assembly overview - anti-roll bar
SEAT Leon Service and Repair Manual / Running gear, axles, steering / Rear suspension / Anti-roll bar / Assembly overview - anti-roll bar

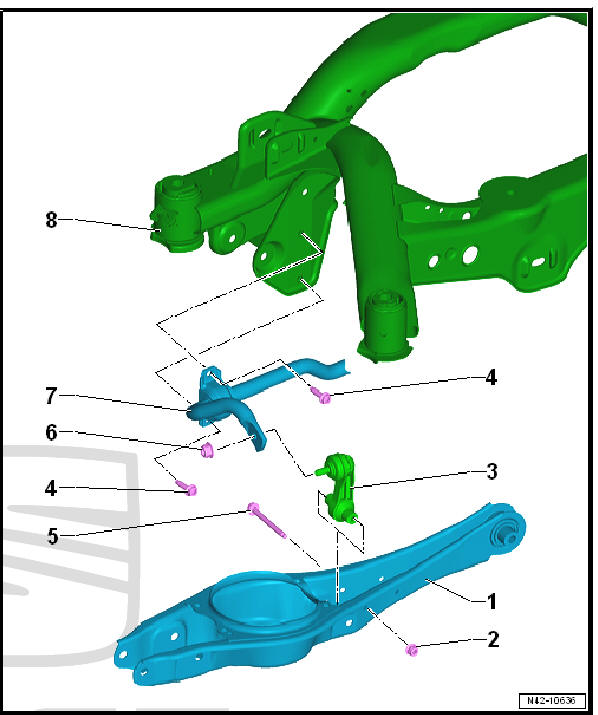

Assembly overview - anti-roll bar, multi-link suspension, front-wheel drive
- - Lower transverse arm
- - Nut
- Always renew after removing
- 20 Nm +180º
- - Connecting rod
- Removing and installing
- - Bolt
- Tighten evenly
- Always renew after removing
- 20 Nm +90º
- - Bolt
- Always renew after removing
- - Nut
- When tightening, counterhold at multi-point socket of coupling rod
- 55 Nm
- - Anti-roll bar
- With rubber bushes
- Removing and installing
- - Sub-frame
Assembly overview - anti-roll bar, multi-link suspension, four-wheel drive
- - Lower transverse arm
- - Nut
- Always renew after removing
- 20 Nm +180º
- - Connecting rod
- Removing and installing
- - Bolt
- Tighten evenly
- Always renew after removing
- 20 Nm +90º
- - Bolt
- Always renew after removing
- - Nut
- When tightening, counterhold at multi-point socket of coupling rod
- 55 Nm
- - Anti-roll bar
- With rubber bushes
- Removing and installing
- - Sub-frame
Anti-roll bar
...
Removing and installing anti-roll bar
Special tools and workshop equipment required
Torque wrenches - V.A.G 1331-
Removing
Remove rear wheels.
Note
The following steps are described for the left side of the vehicle.
Th ...
