Seat Leon >> Sub-frame
Assembly overview - subframe

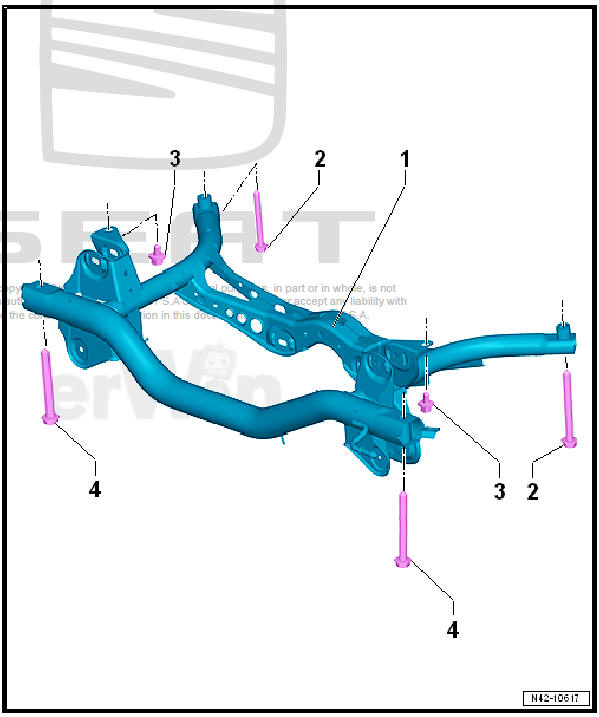

Assembly overview - subframe, multi-link suspension, front-wheel drive
- - Sub-frame
- Removing and installing subframe with attachments
- - Bolt
- Always renew after removing
- 70 Nm +180º
- - Bolt
- Always renew after removing
- 50 Nm +45º
- - Bolt
- Always renew after removing
- 70 Nm +180º

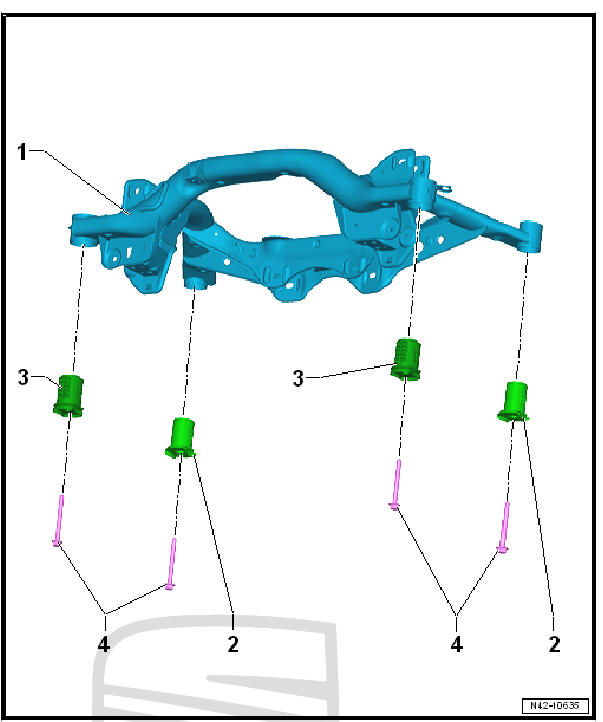

Assembly overview - subframe, multi-link suspension, four-wheel drive
- - Sub-frame
- Removing and installing subframe with attachments
- - Bonded rubber bush (rear)
- Replace
- - Bonded rubber bush (front)
- Replace
- - Bolt
- Always renew after removing
- 70 Nm +180º
Axle beam
Assembly overview - axle beam
- Cover
- Bolt
Always renew after removing
50 Nm +45º
- Bolt
Always renew after removing
Tighten in unladen state
70 Nm +360º
- A ...
Secure the subframe
Fixing position of subframe, multi-link
suspension, front-wheel drive
Special tools and workshop equipment required
Locking device - T10096-
Engine/gearbox jack - VAS 6931-
Rear ...
