Seat Leon >> Lower suspension link, swivel joint
SEAT Leon Service and Repair Manual / Running gear, axles, steering / Front suspension / Lower suspension link, swivel joint

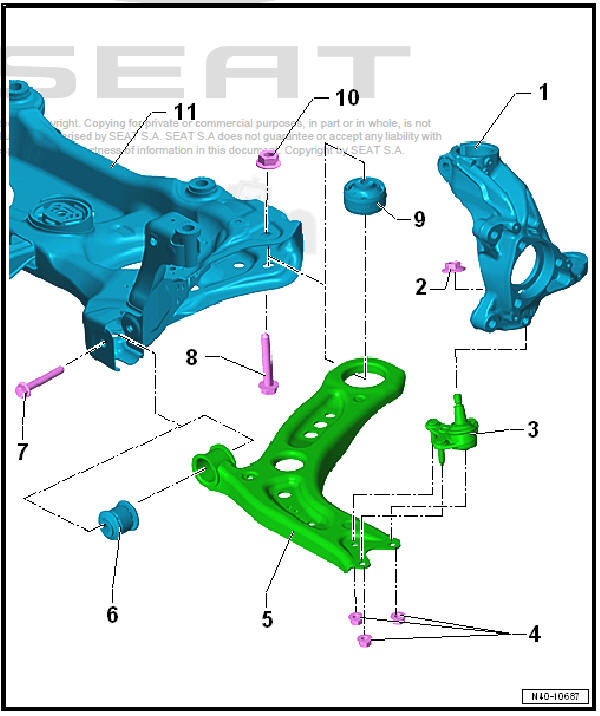

Assembly overview - lower suspension link, swivel joint
- - Wheel bearing housing
- Different versions possible.
- Removing and installing
- - Nut
- Always renew after removing
- 60 Nm
- - Swivel joint
- Removing and installing
- - Nut
- Always renew after removing
- Tighten in unladen state
- 40 Nm +45º
- - Lower suspension link
- Removing and installing
- - Bonded rubber bush (front)
- Replace
- - Bolt
- Always renew after removing
- Tighten in unladen state
- 70 Nm +180º
- - Bolt
- Always renew after removing
- 70 Nm +180º
- - Bonded rubber bush (rear)
- Replace
- - Nut
- - Sub-frame
- Removing and installing lower suspension link
- Removing and installing swivel joint
- Renewing bonded rubber bush for lower suspension link
