Seat Leon >> 1.2l and 1.4I TSI engines
SEAT Leon Service and Repair Manual / Maintenance / Description of work / Spark plugs: replace / 1.2l and 1.4I TSI engines
Removing

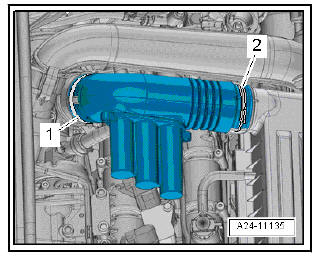

- Loosen hose clips -1- and -2- and remove air hose.
Only engines with code CZEA

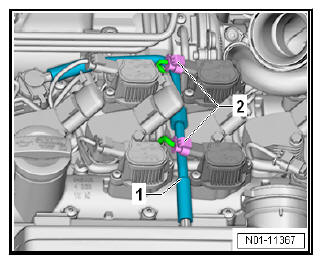

- Disconnect connectors -2-, and pull off air hose -1-.
Continue for all engines

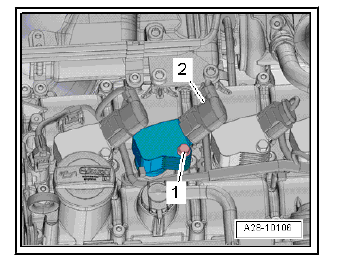

- Unplug electrical connector -2-.
- Unscrew the bolt -1-.

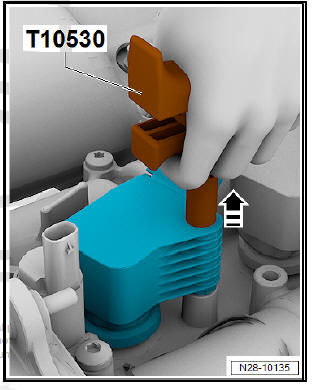

- Push puller - T10530- into hole in ignition coil -1- to stop.
- Tighten knurled nob -2- in -direction of arrow-.
- Pull out the ignition coil with the puller - T10530- by pulling in the direction of the -arrow-.
Repeat this process with all ignition coils.
NOTICE Note installation position of ignition coils with output stages.
Check that the conducts have not been bent or damaged.
- Remove spark plugs with spark plug socket and extension - 3122 B- .
Installation
- Screw in new spark plugs using a spark plug socket and extension - 3122 B- to the tightening torque.
- Align the ignition coils one after another and feed into the cavities for the spark plugs without pulling on them.
- Press ignition coils onto spark plugs by hand evenly (do not use tool).

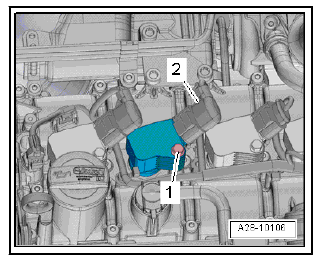

- Tighten the screw -1- of the ignition coils at tightening torque.
- Plug in the electric connector -2-.
Repeat this process with all ignition coils.
For installation, proceed in the reverse sequence.
1.0 l TSI engines
Removing
Remove the air filter housing.
Remove air guide hose.
Unplug the electrical connector -2-.
Unscrew the bolt -1-.
Push puller - T10530- into hole in ignition coil -1- to stop ...
1.6 l MPI engines
Removing
Remove air filter housing.
Unplug the electrical connector -2-.
Unscrew the bolt -1-.
Push puller - T10530- into hole in ignition coil -1- to stop.
Tighten knurled nob -2- i ...
